General Description
›
Shift Pattern Control
›
< 3.0L Engine > Downshift Pattern
< 3.0L Engine > Downshift Pattern

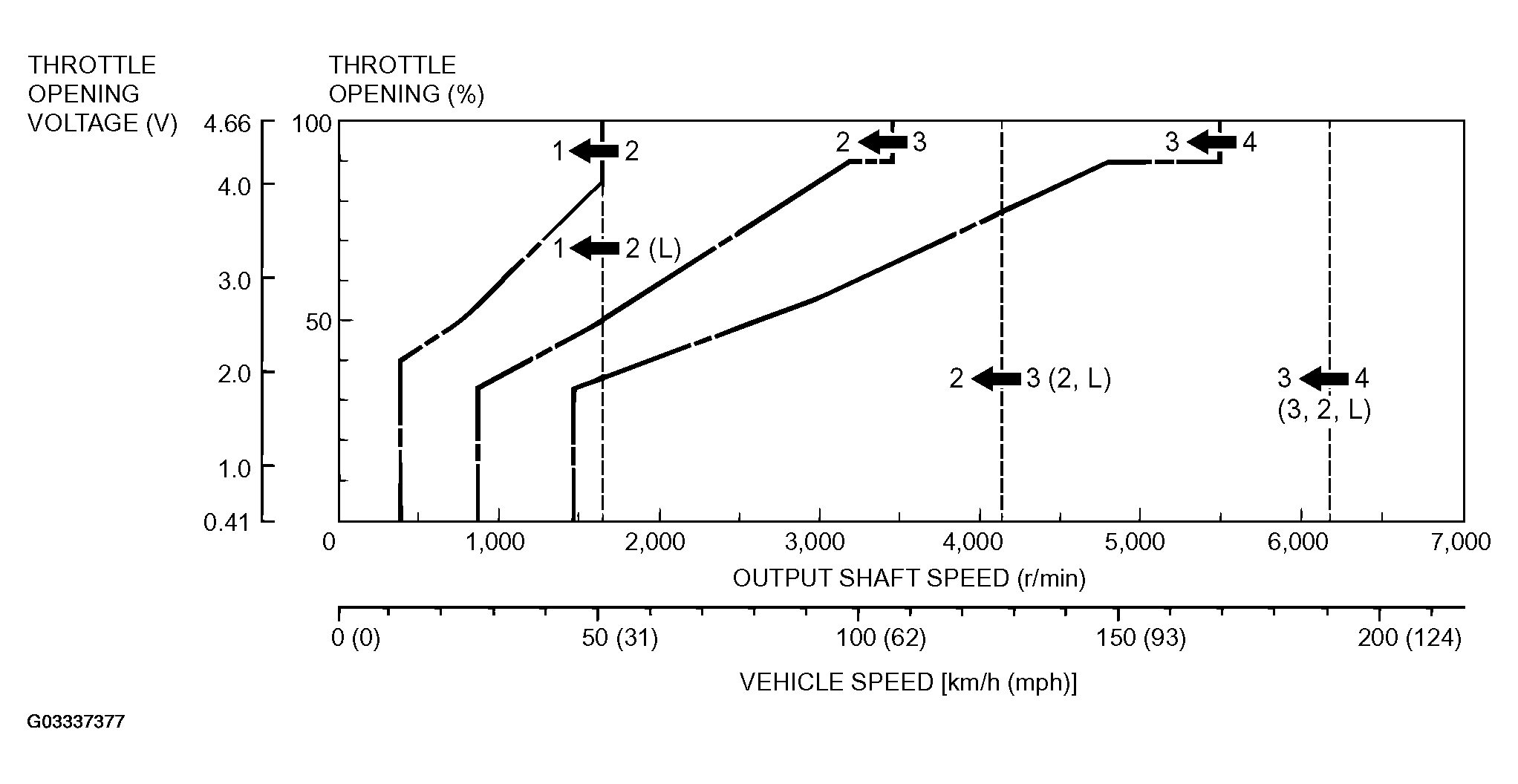

Fig 1: Shift Pattern Control - 3.0L Engine Downshift Pattern
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
