Removal And Installation

CAUTION: When removing and installing the transmission control cable and shift lock cable unit, be careful not to impact the SRS-ECU.

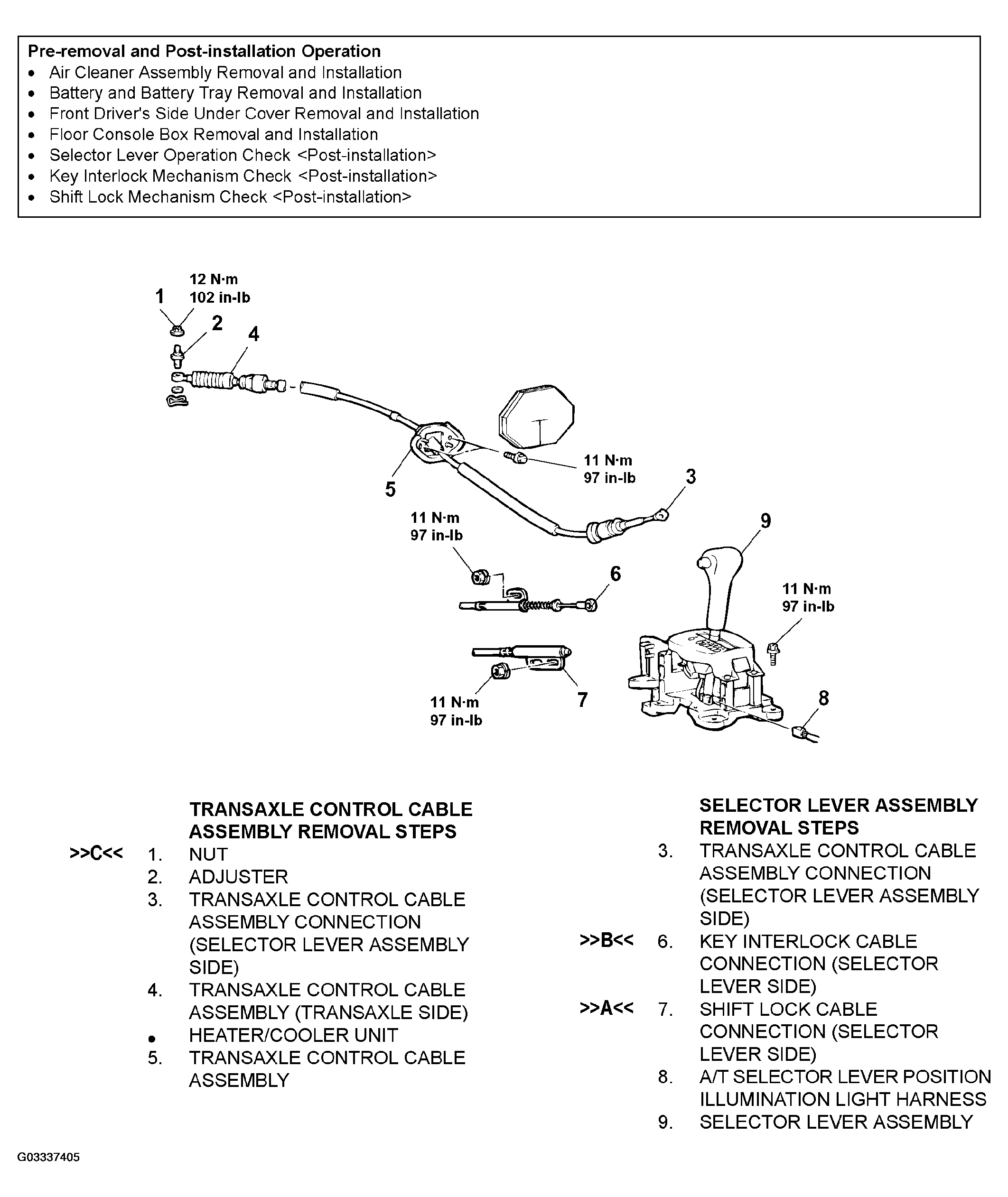

Fig 1: Removing & Installing Transaxle Control

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
