Disassembly And Assembly: Notes

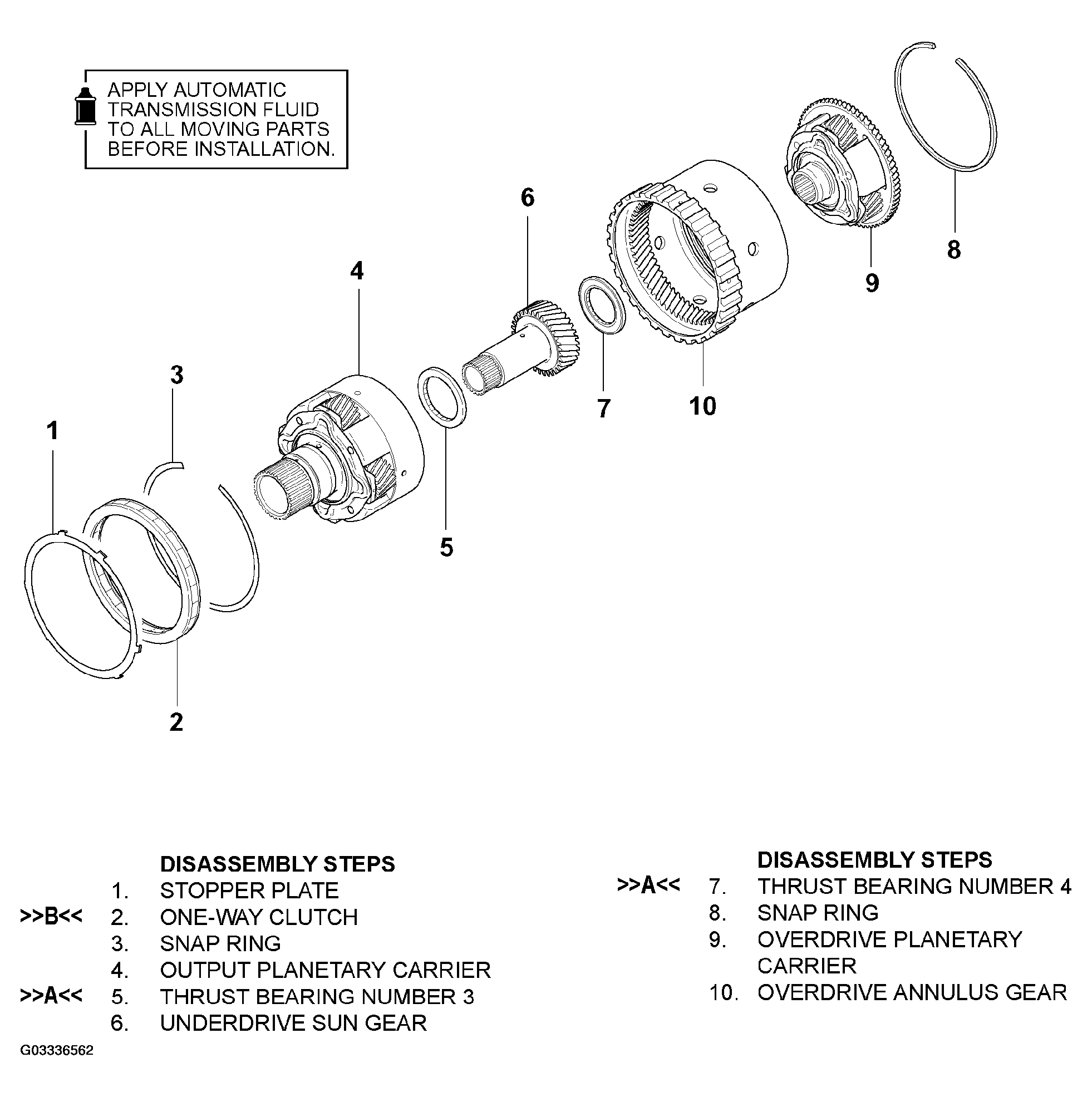

Fig 1: Identifying Planetary Gear Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
