Disassembly And Assembly: Notes

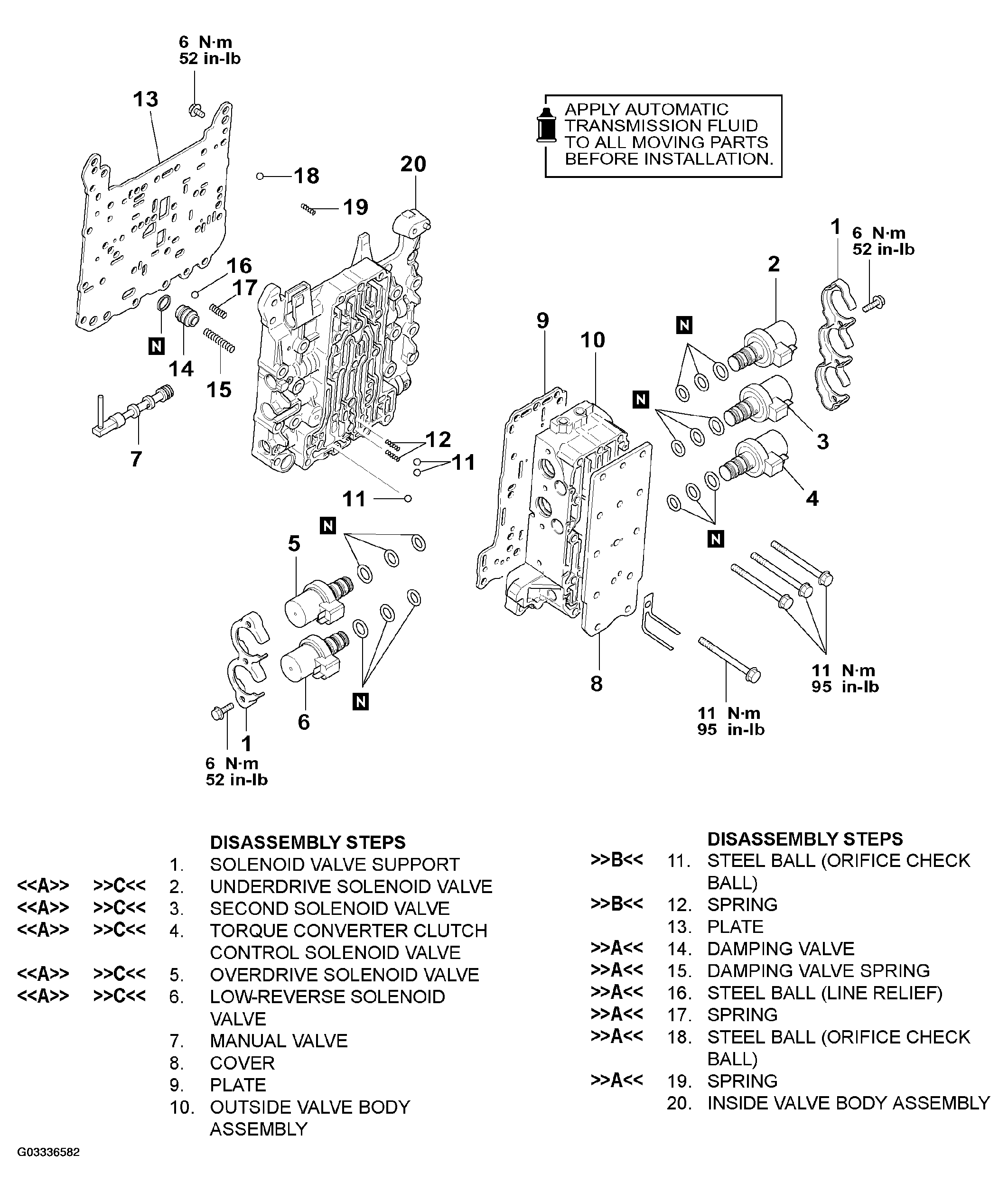

Fig 1: Identifying Valve Body Components (1 Of 3)
G03336582Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

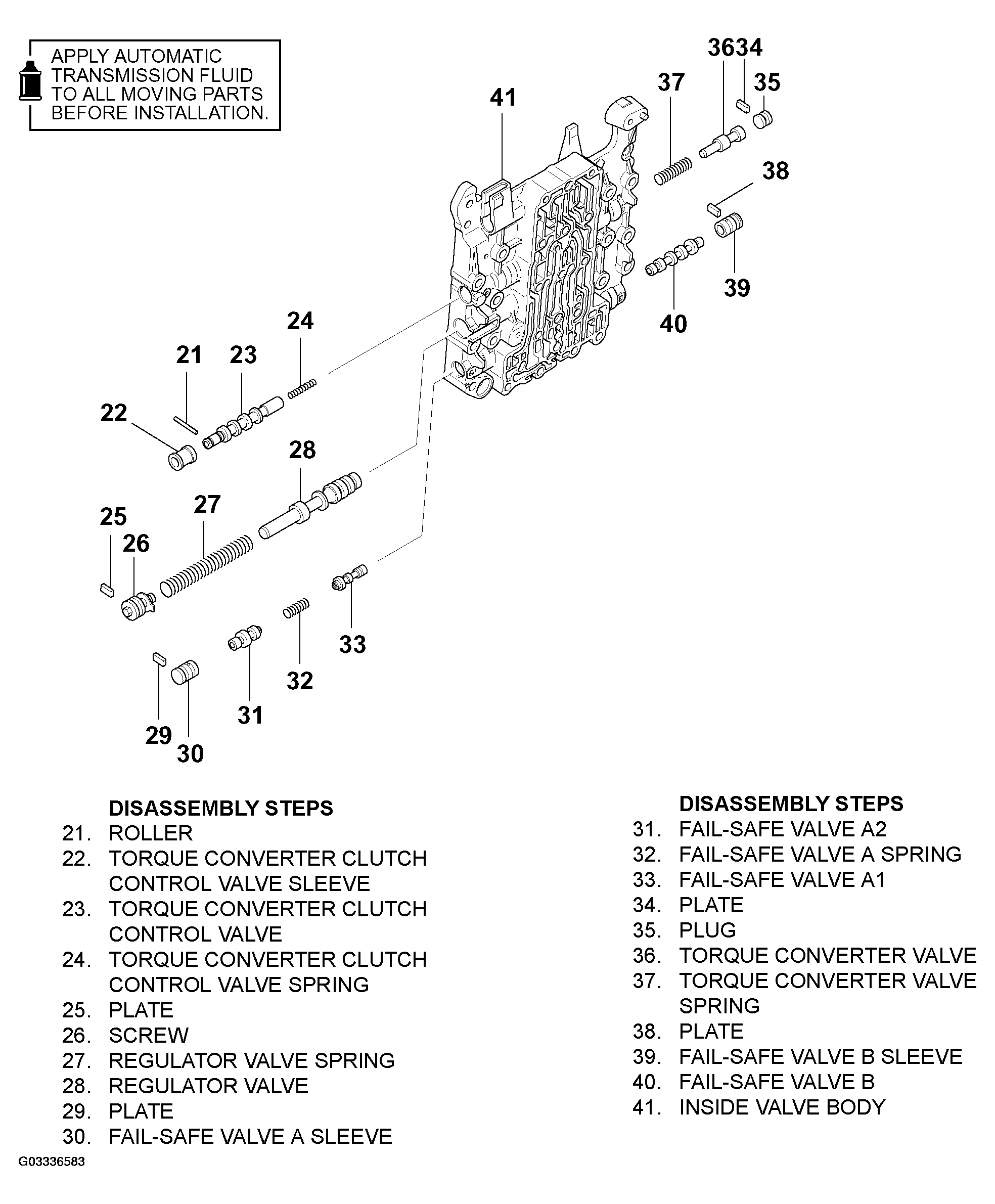

Fig 2: Identifying Valve Body Components (2 Of 3)
G03336583Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

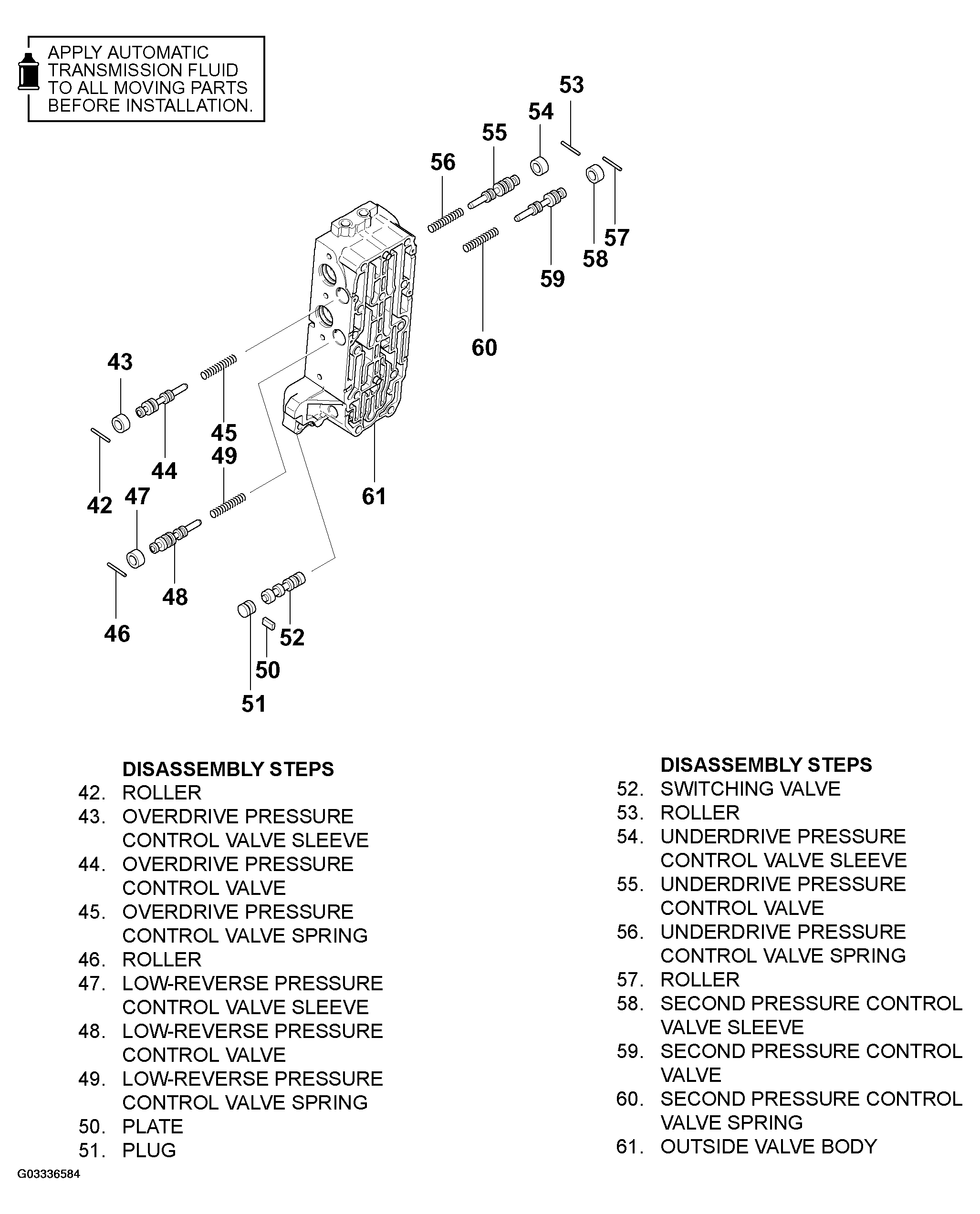

Fig 3: Identifying Valve Body Components (3 Of 3)
G03336584Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
