Power/Heated Mirrors - Except Evolution
›
Inspection
›
Door Mirror Control Switch Continuity Check
Door Mirror Control Switch Continuity Check

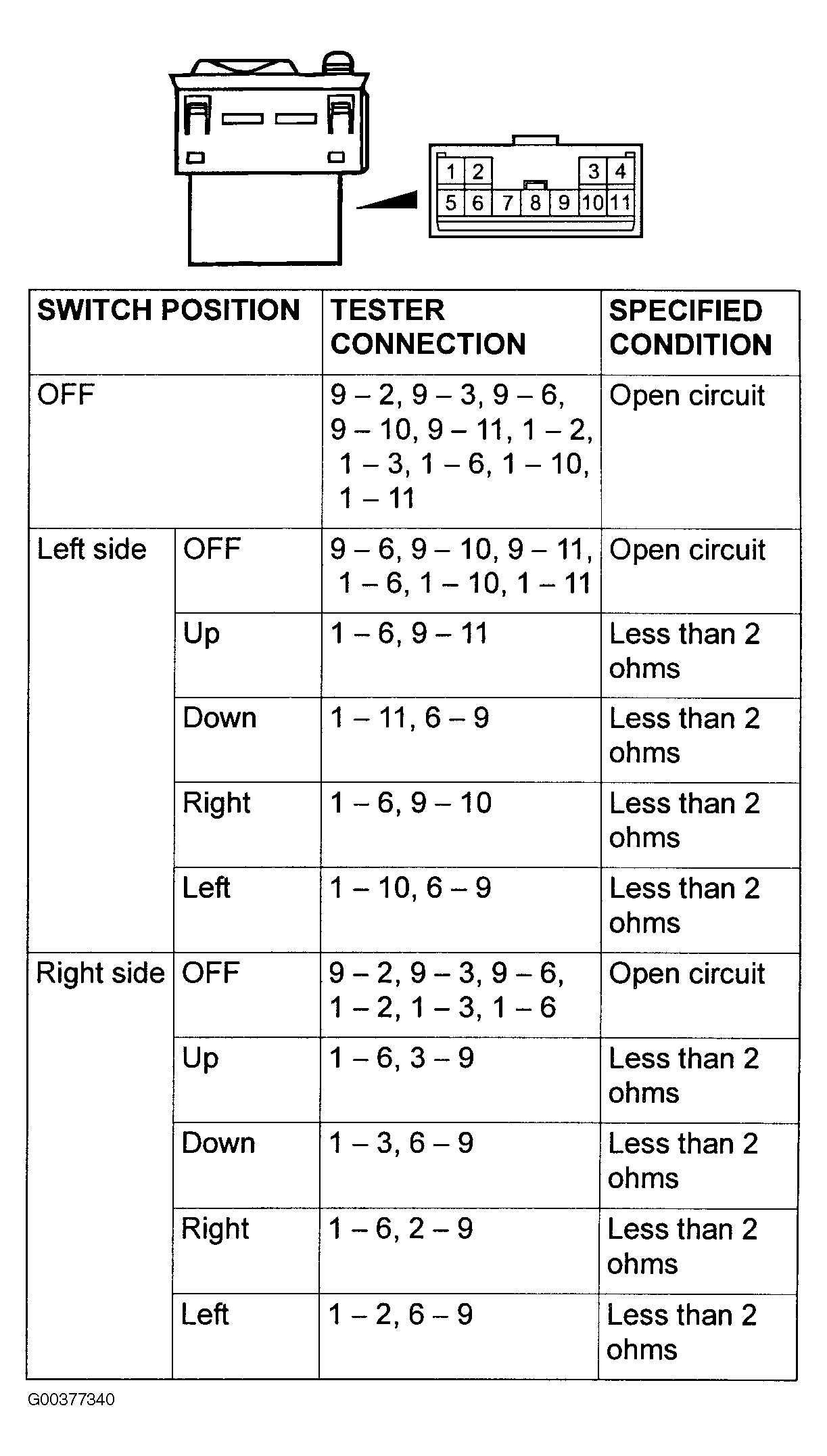

Fig 1: Checking Door Mirror Control Switch Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
