DTC 27: Park/Neutral Position Switch System (Open Circuit): Notes

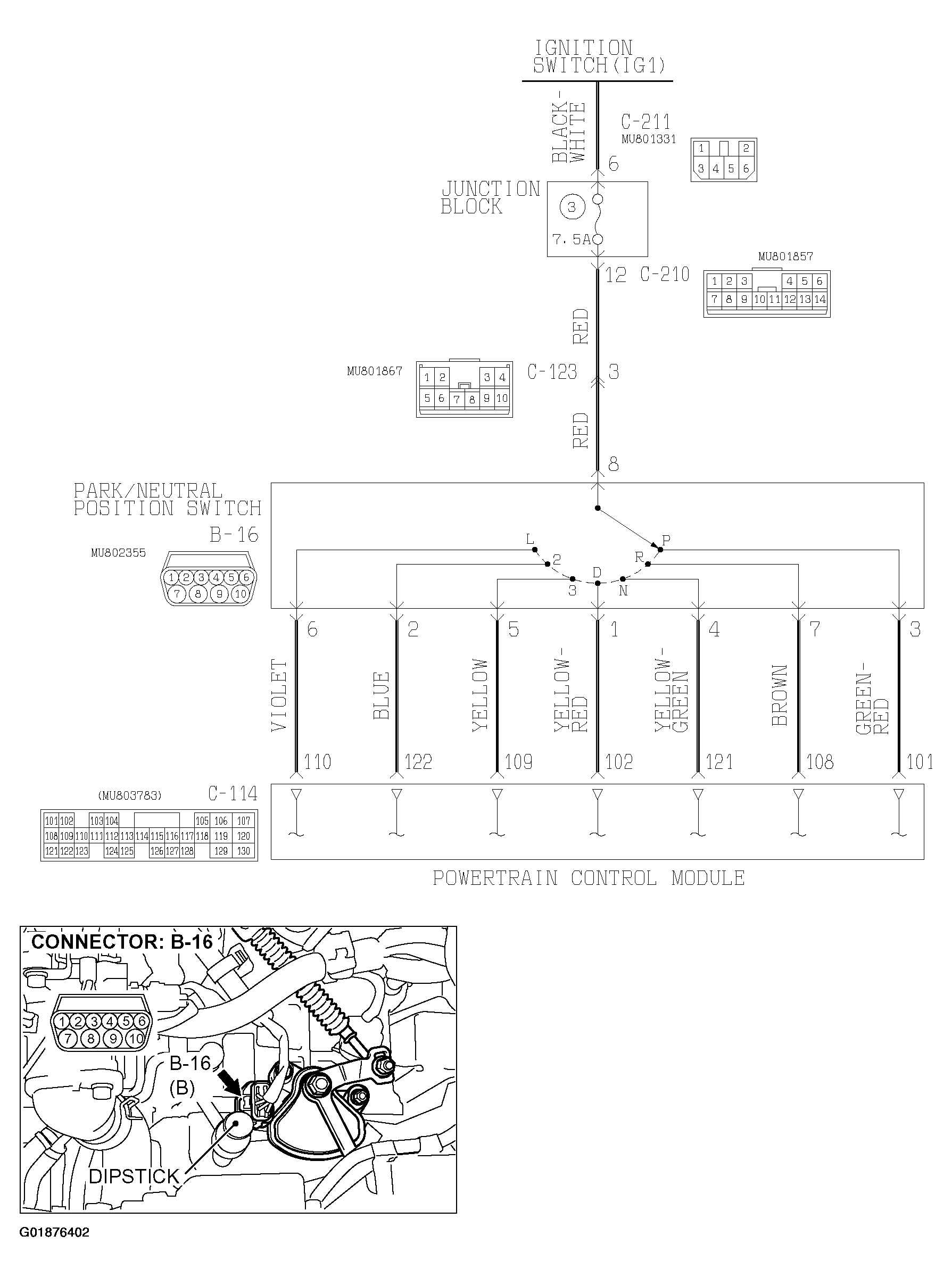

Fig 1: Park/Neutral Position Switch System Diagram
G01876402Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

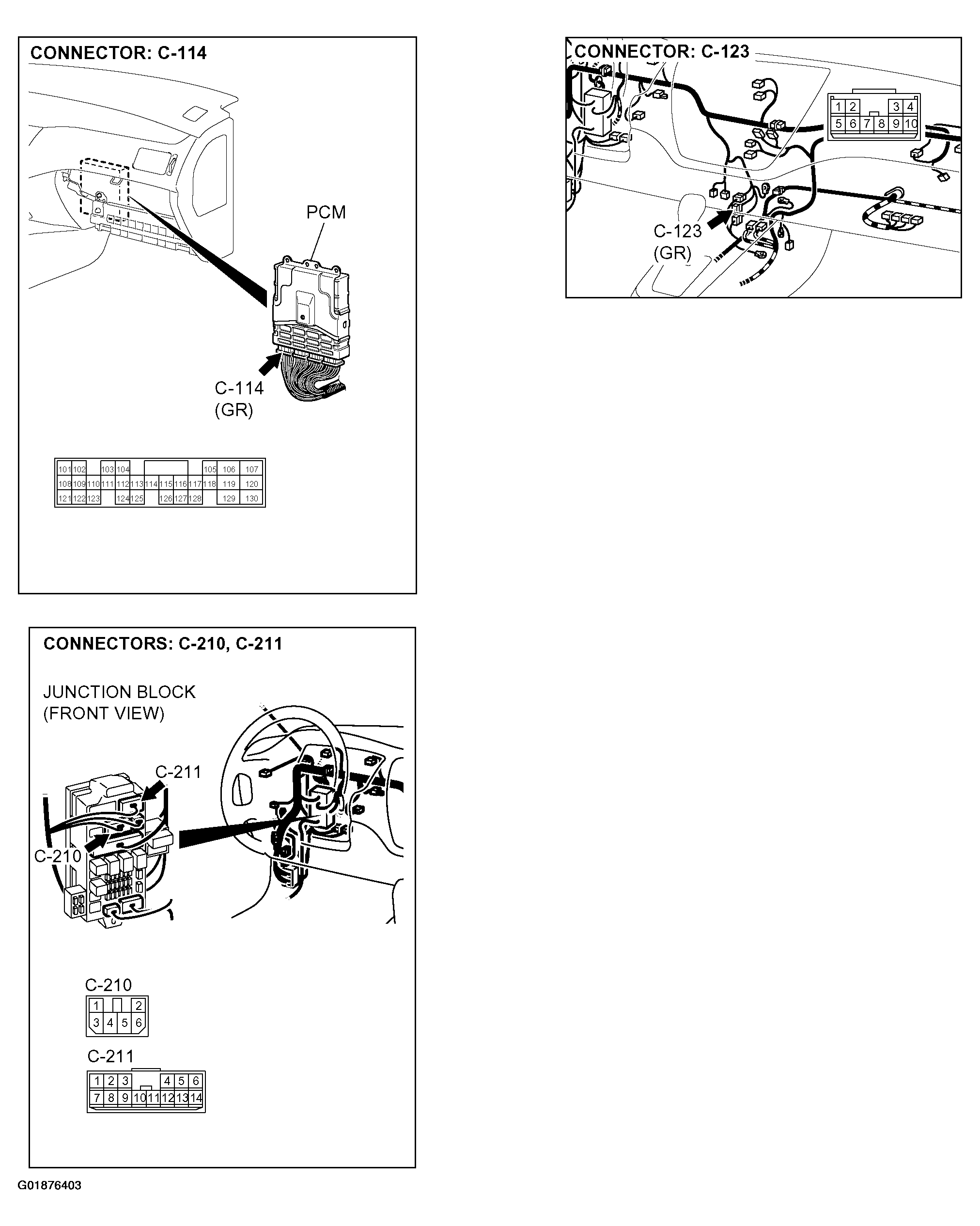

Fig 2: Park/Neutral Position Switch System Connectors
G01876403Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
