Home › Mitsubishi › 2003 › Lancer ES, Standard › Repair and Diagnosis › Engine Mechanical › Mechanical › Overhaul - Except Evolution › Generator And Ignition System › Removal And Installation

Removal And Installation

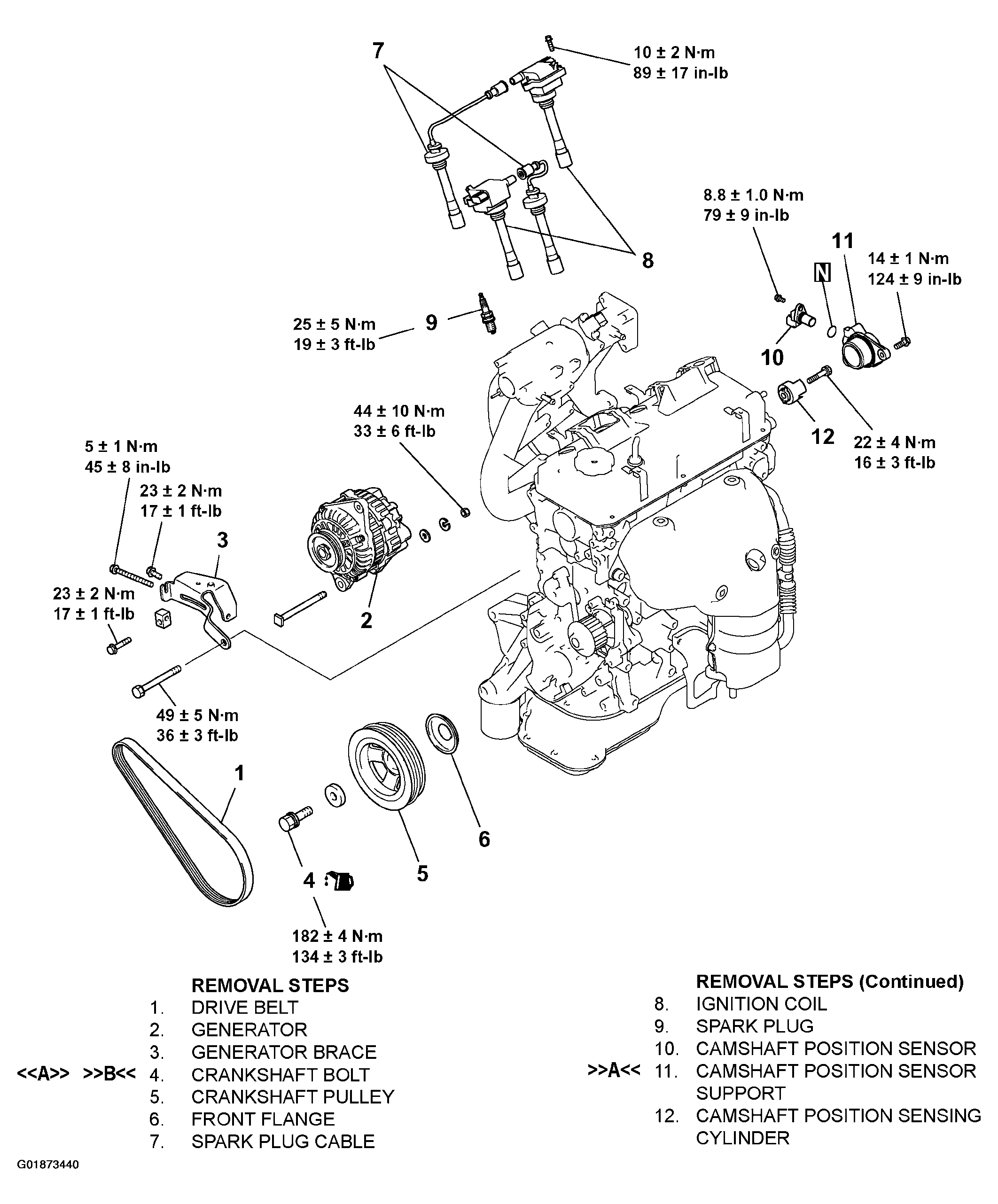

Fig 1: Exploded View Of Generator And Ignition System Components
G01873440Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
