Home › Mitsubishi › 2003 › Lancer ES, Standard › Repair and Diagnosis › Steering › Power Steering › Steering - Except Evolution › Power Steering Oil Pump Assembly › Removal And Installation › Notes

Removal And Installation: Notes

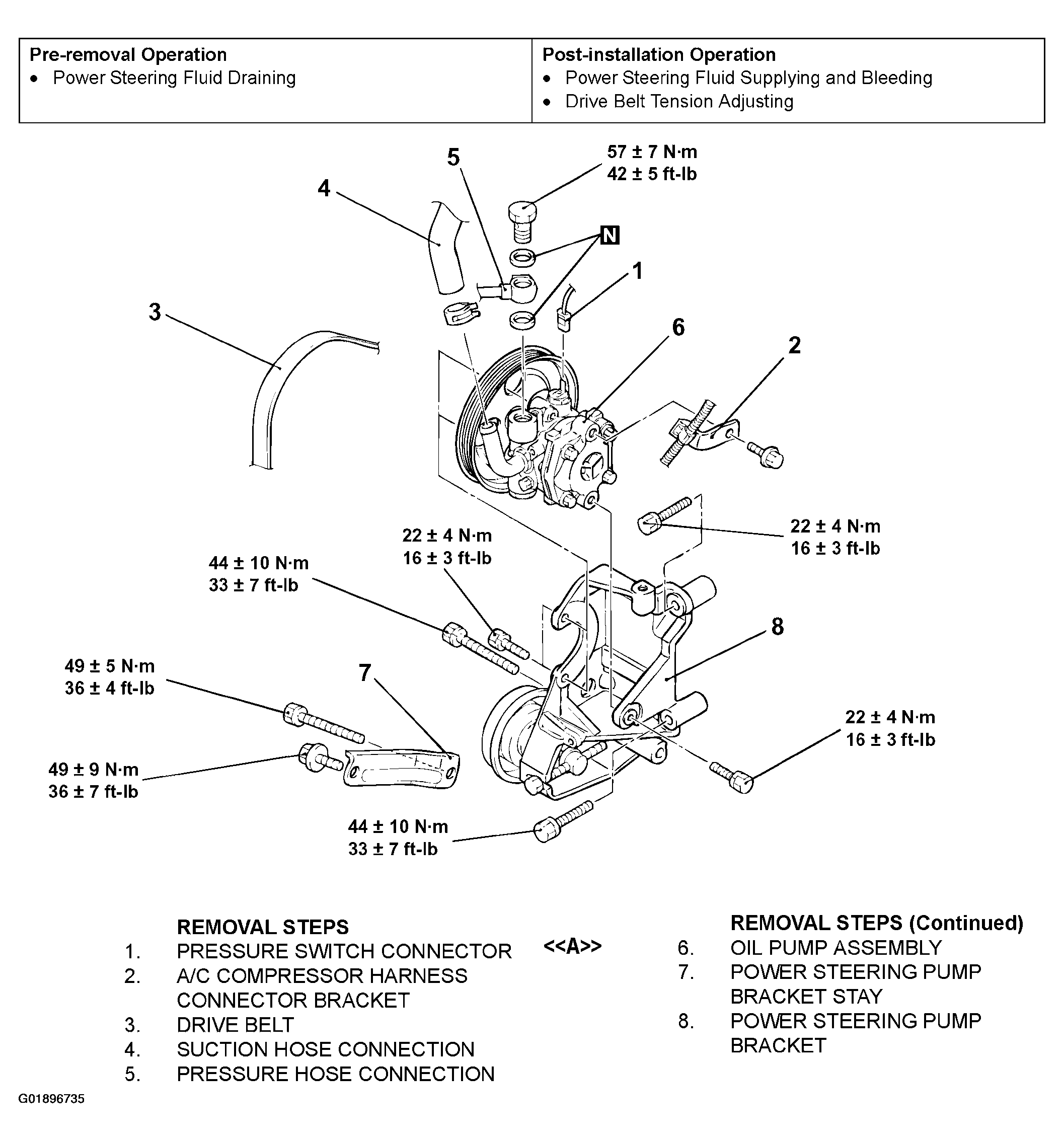

Fig 1: Removing/Installing Power Steering Oil Pump Assembly
G01896735Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
