Disassembly And Assembly: Notes

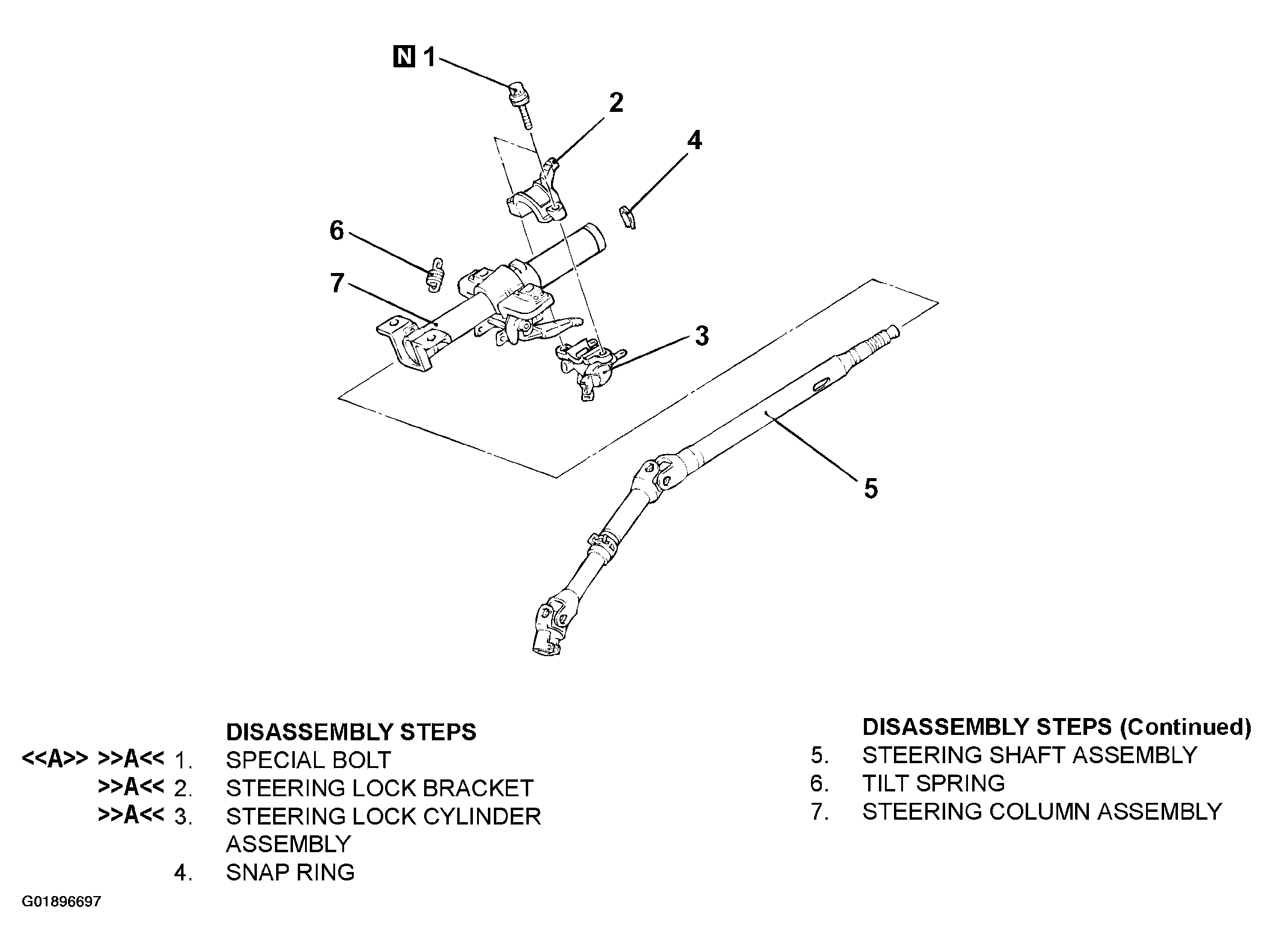

Fig 1: Disassembling/Assembling Steering Wheel And Shaft Assembly
G01896697Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
