Home
›
Mitsubishi
›
2003
›
Lancer Evolution
›
Repair and Diagnosis (Single Page)
›
Body & Frame
›
Exterior/Interior Trim
›
Headlining - Evolution
›
Front Seat Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes

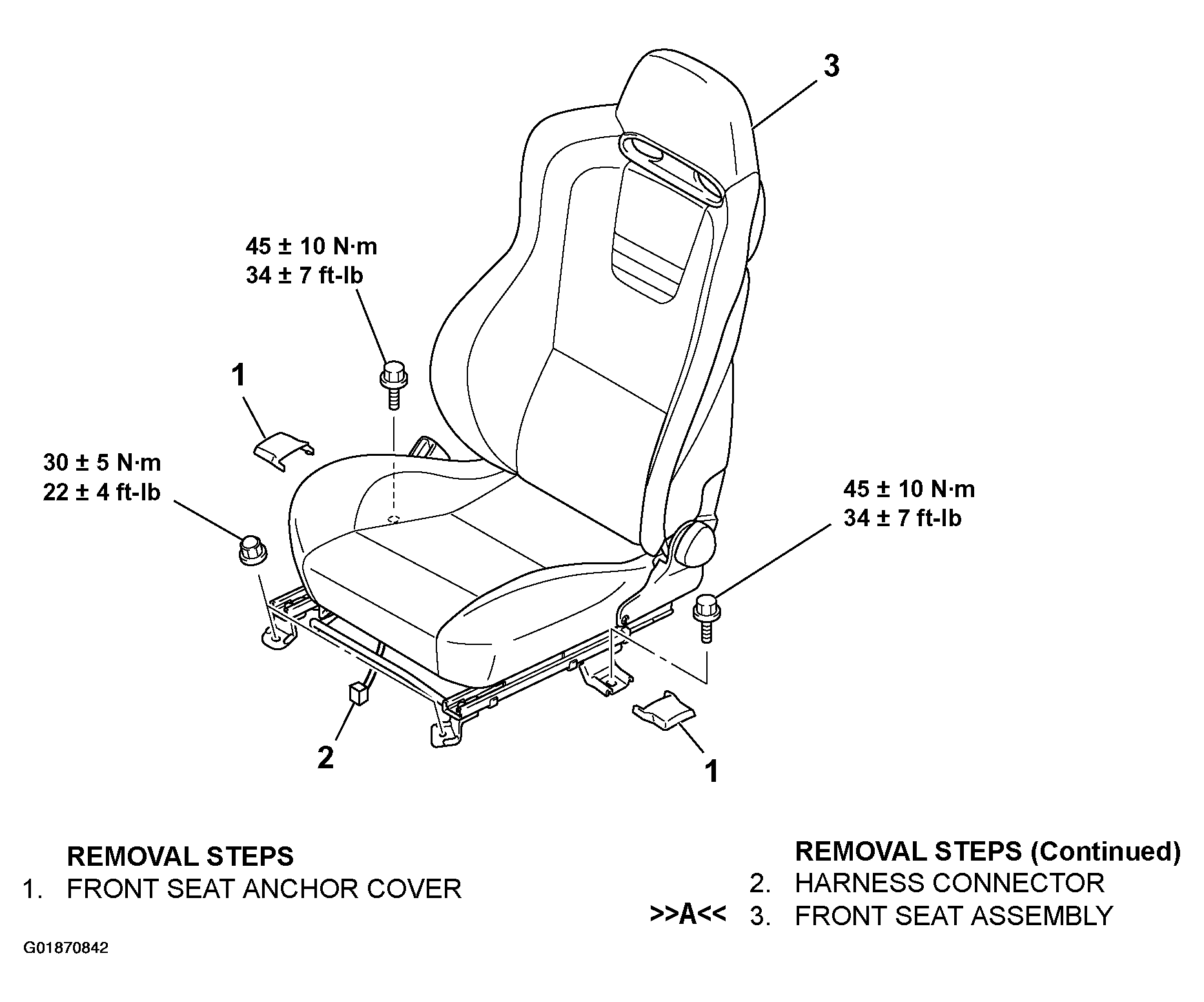

Fig 1: Exploded View Of Front Seat Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
