FixVault
Home
›
Mitsubishi
›
2003
›
Lancer Evolution
›
Repair and Diagnosis (Single Page)
›
Engine Mechanical
›
Mechanical
›
Overhaul - Evolution
›
Specifications
›
Service Specifications
Service Specifications

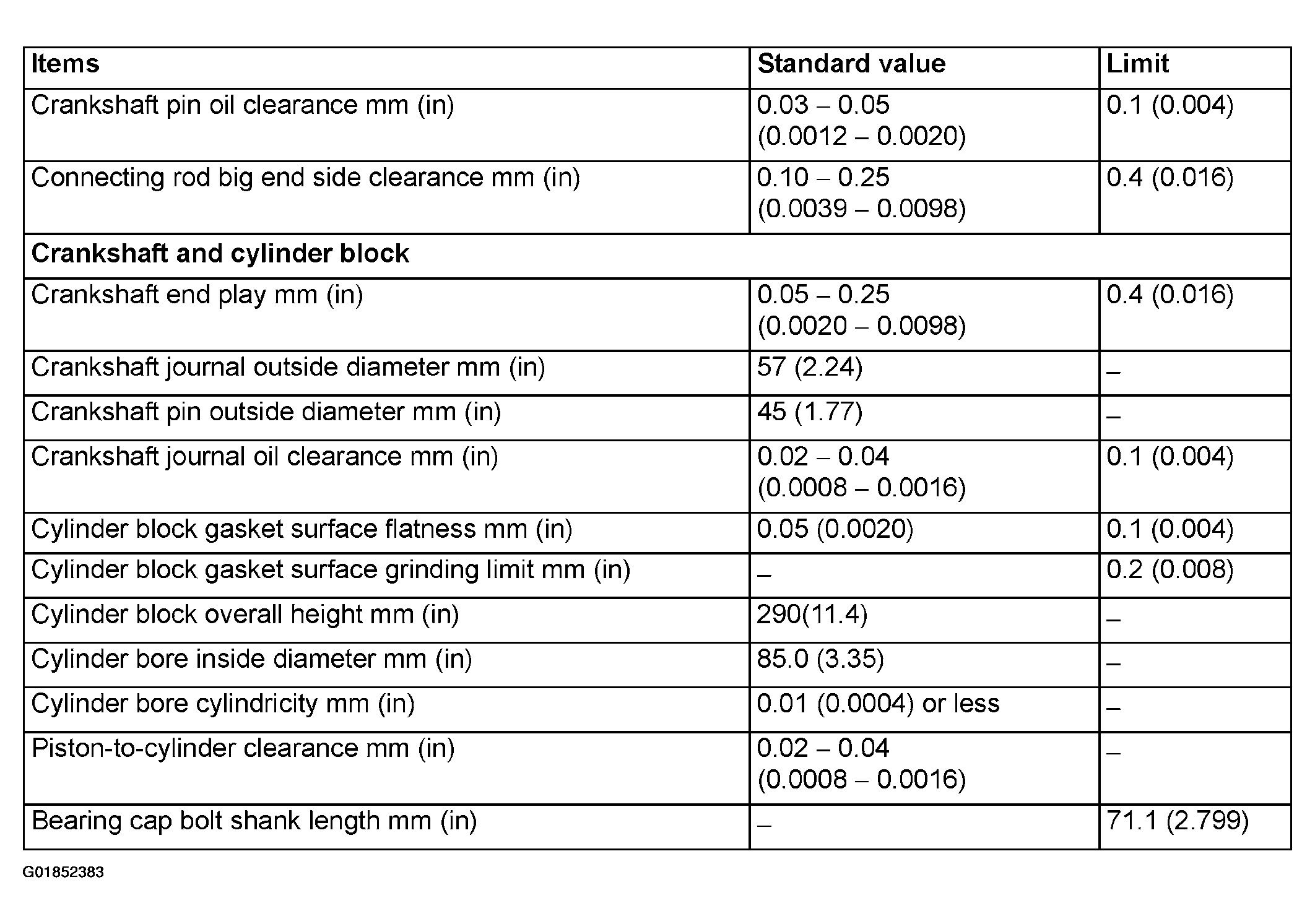

Fig 1: Service Specifications Index (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

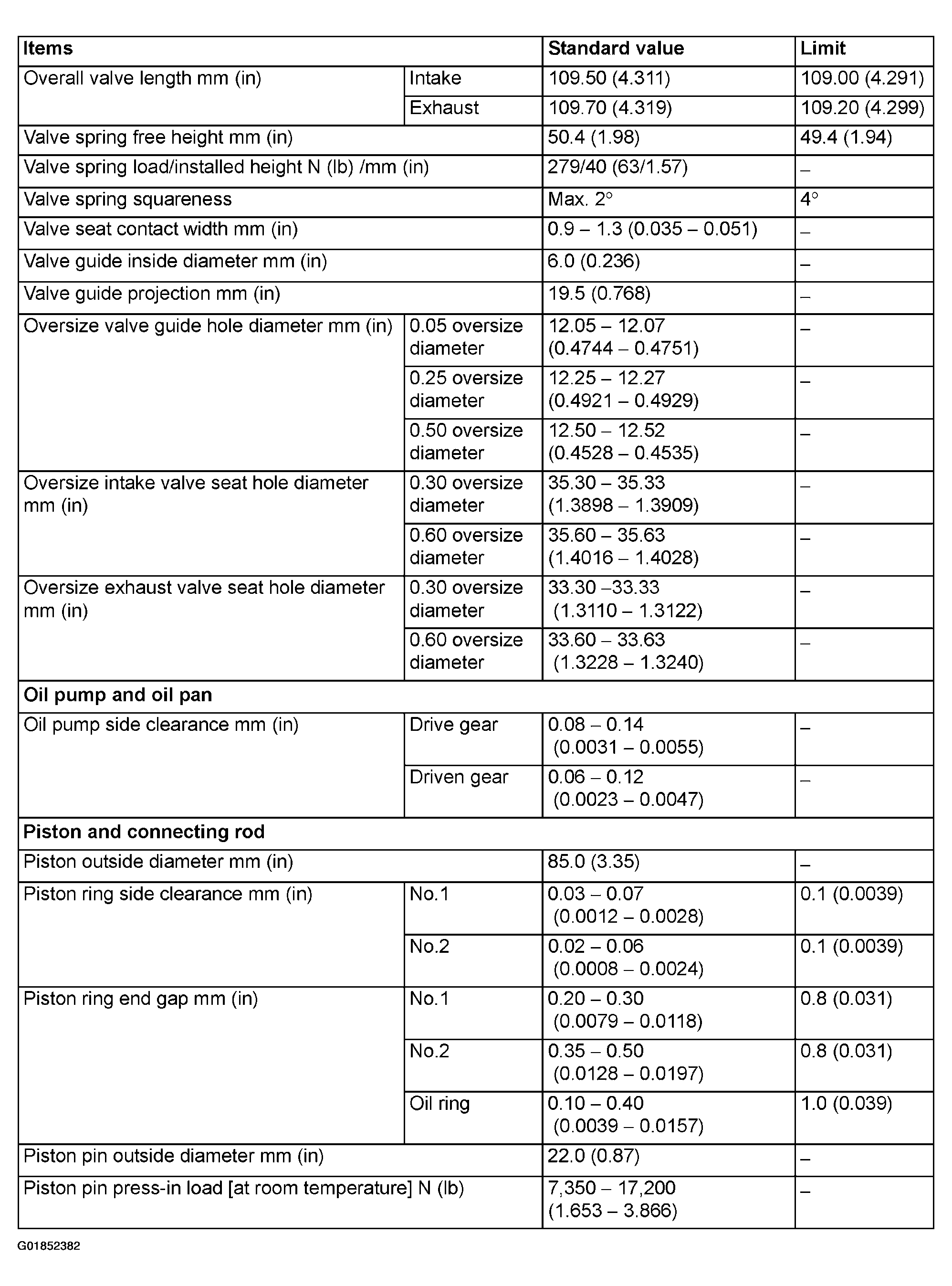

Fig 2: Service Specifications Index (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Service Specifications Index (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
