Notes
Removal & Installation: Notes

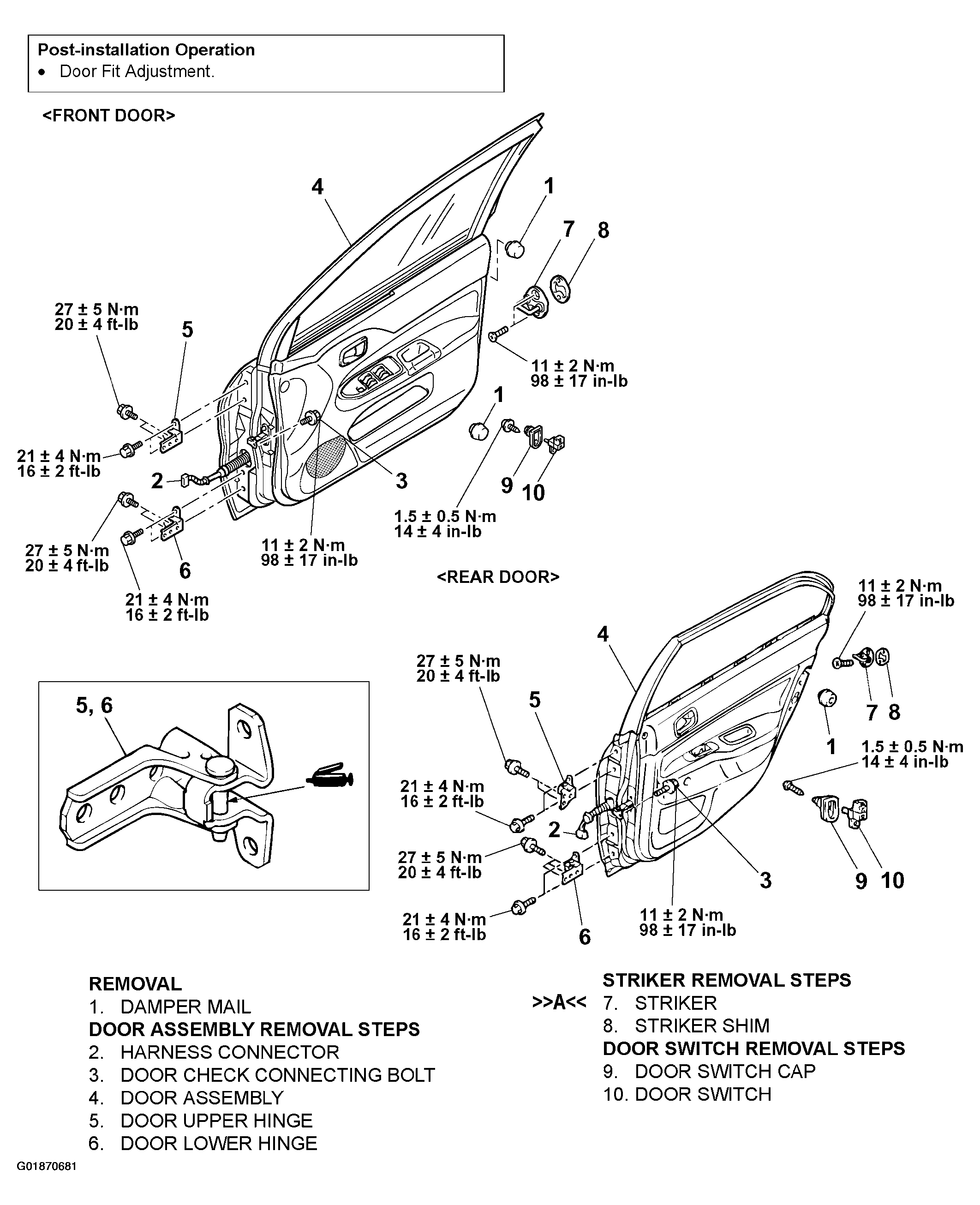

Fig 1: Door Assembly Removal Procedure & Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
