Power Window Relay Check

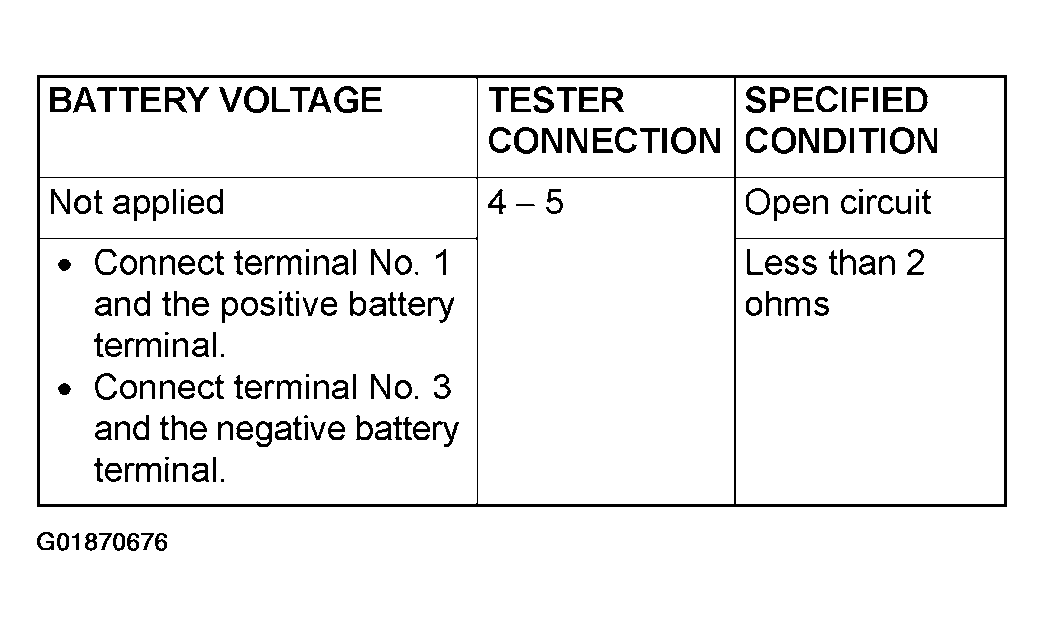

Fig 1: Power Window Relay Specifications Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

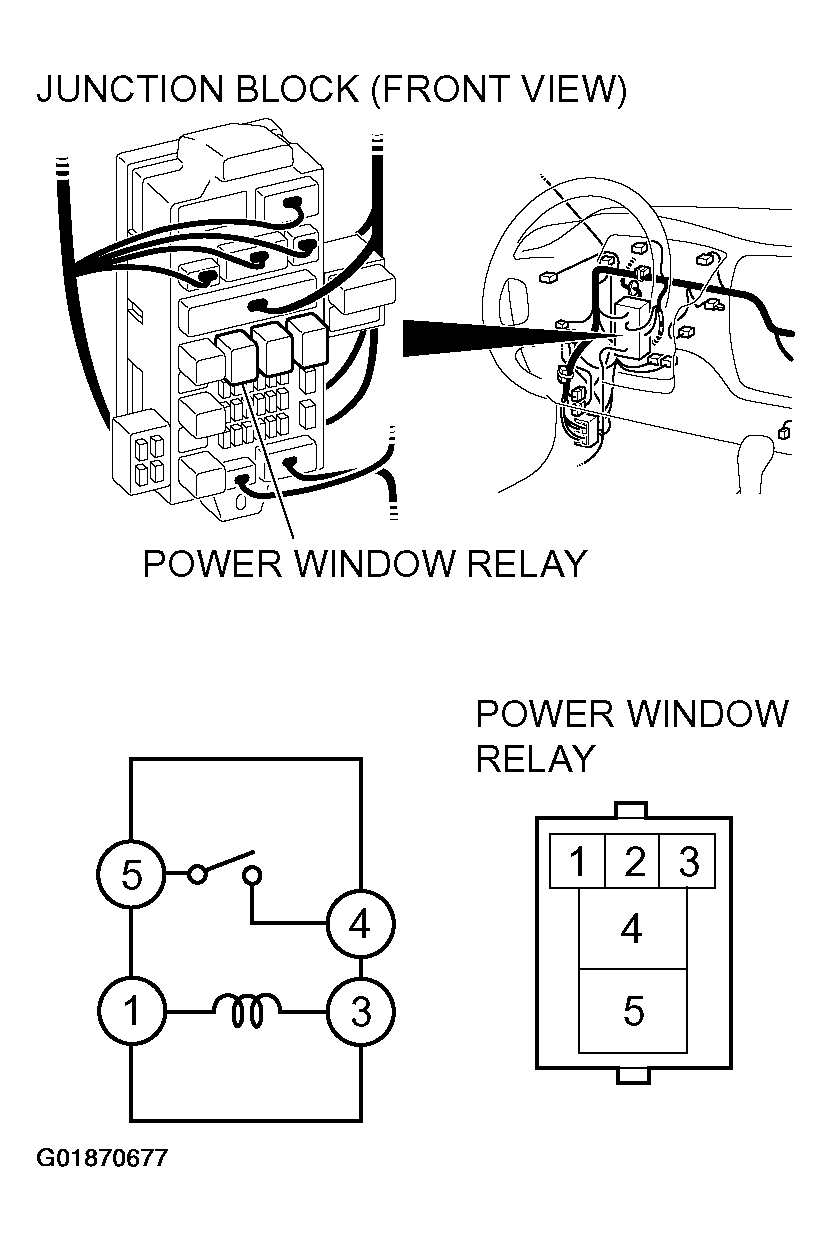

Fig 2: Checking Power Window Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
