Headlining - Evolution
›
Headlining
›
Removal And Installation
Removal And Installation

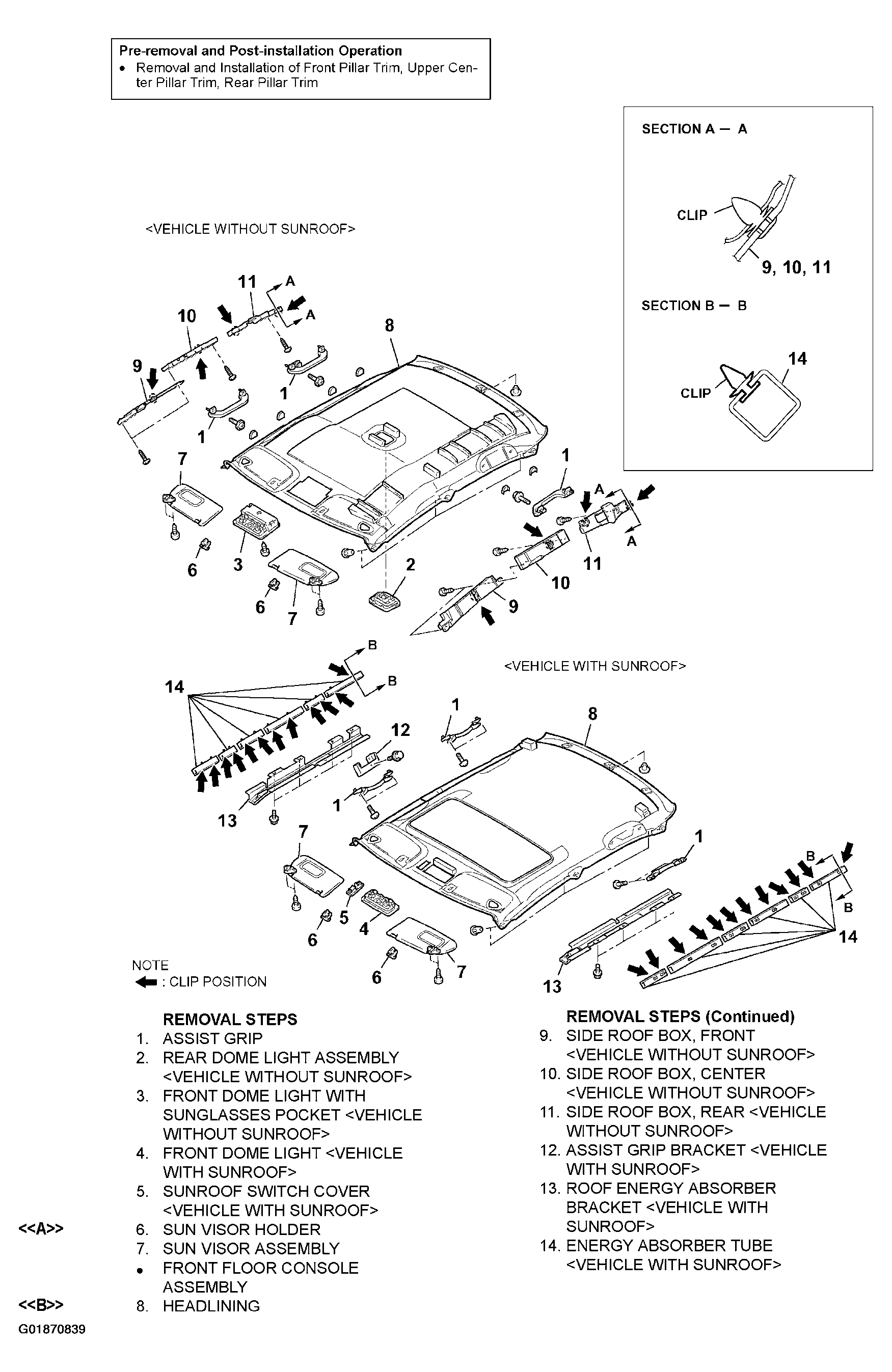

Fig 1: Exploded View Of Headlining
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tool:
MB990784: Ornament remover
