Construction Diagram: Notes

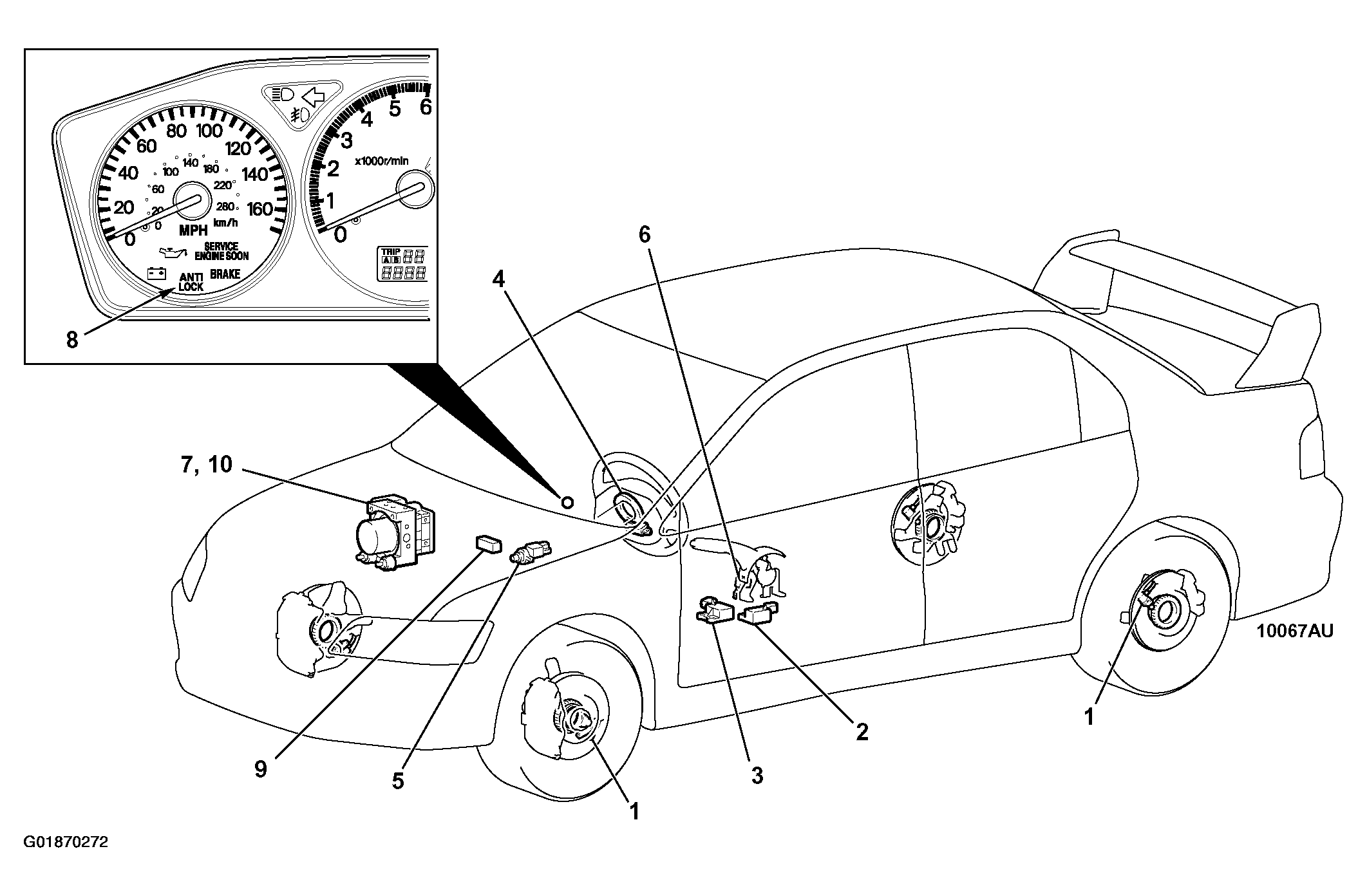

Fig 1: Construction Diagram Of Sports ABS (1 Of 2)
G01870272Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

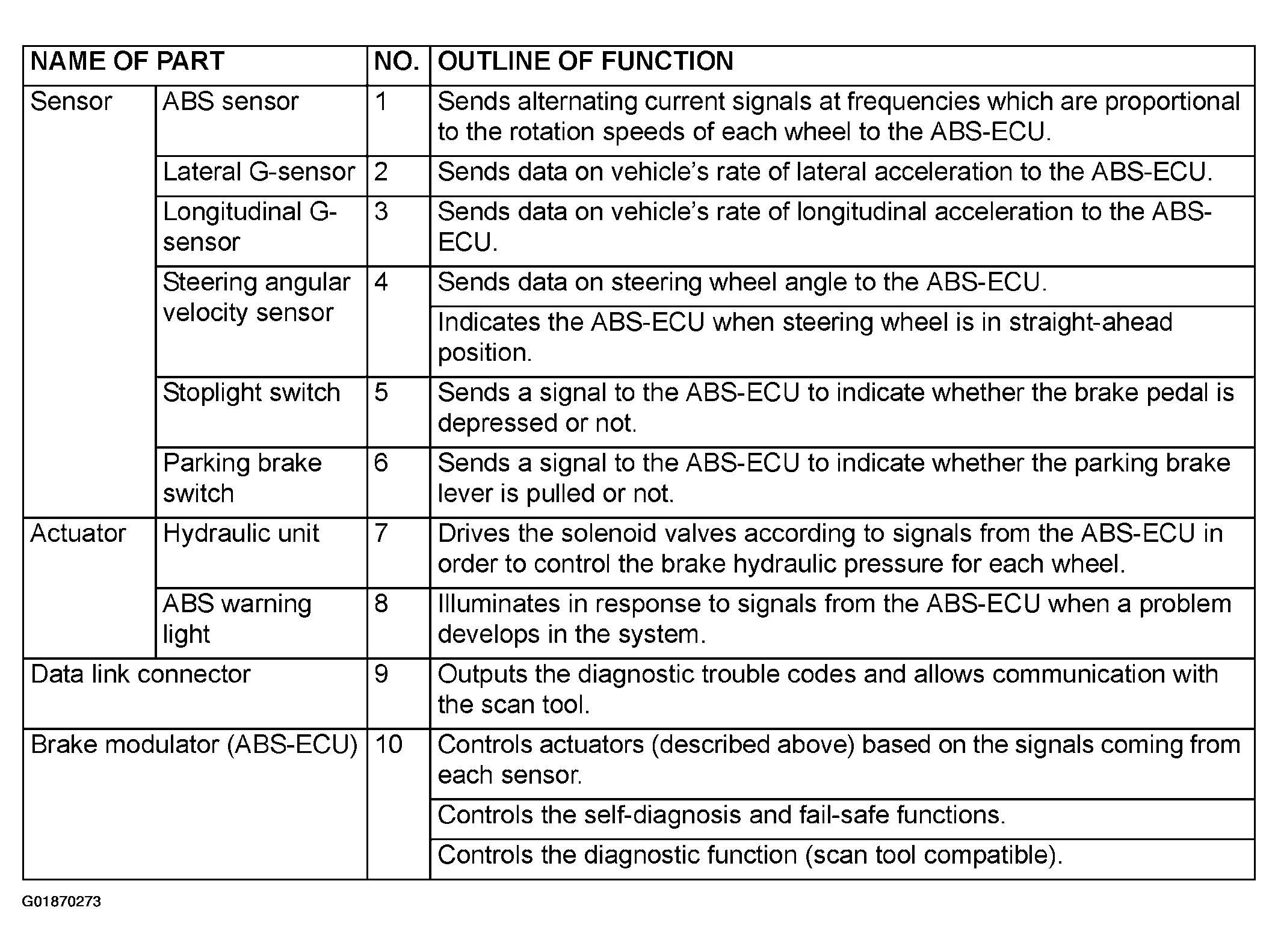

Fig 2: Construction Diagram Of Sports ABS (2 Of 2)
G01870273Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
