A/T Control Relay Connector B-11X Connector End View (Except Evolution)
A/T Control Relay Connector B-11X Connector End View (Except Evolution)

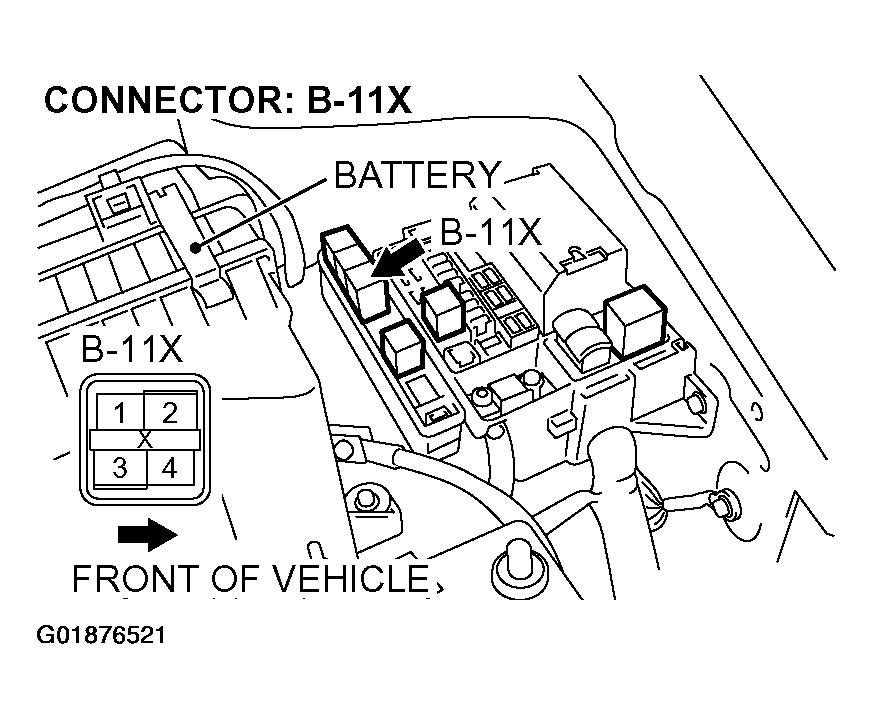

Fig 1: A/T Control Relay Connector B-11X Connector End View (Except Evolution)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
