Combination Meter Connector C-01 Connector End View (Evolution)
Combination Meter Connector C-01 Connector End View (Evolution)

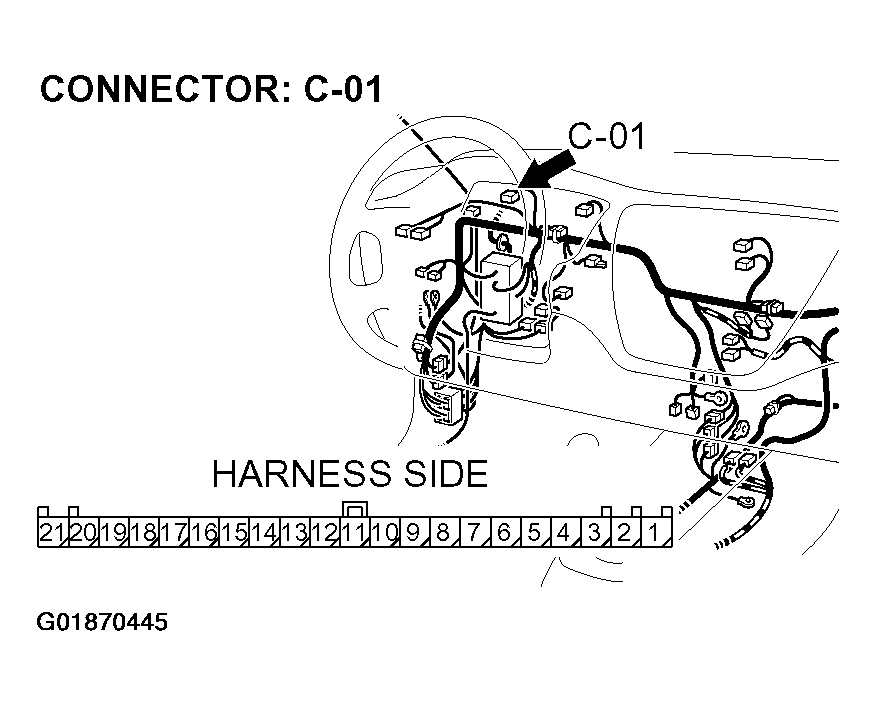

Fig 1: Combination Meter Connector C-01 Connector End View (Evolution)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
