Connector A-31 Connector End View (Evolution)
Connector A-31 Connector End View (Evolution)

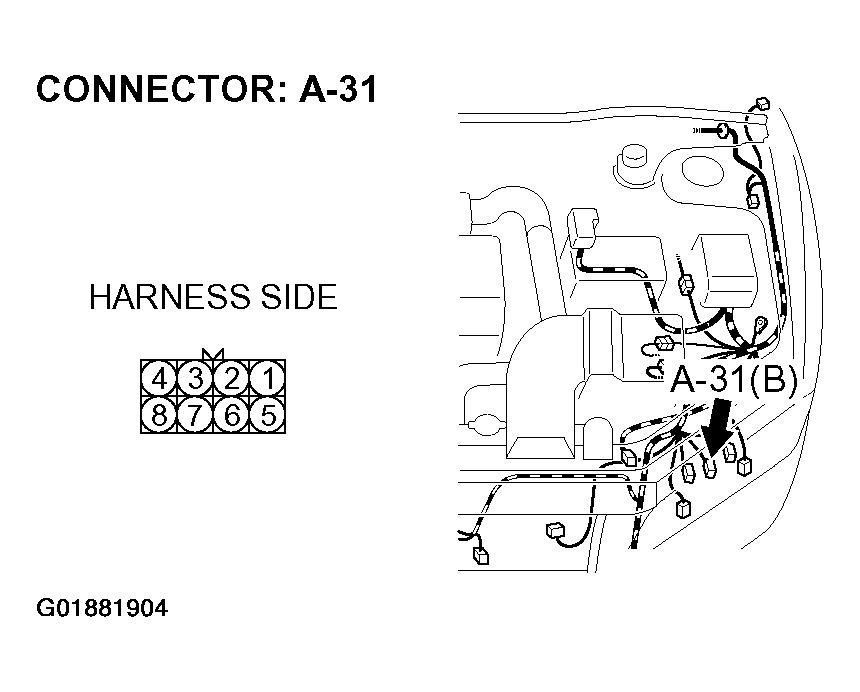

Fig 1: Connector A-31 Connector End View (Evolution)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
