Connector B-118 Connector End View (Except Evolution)
Connector B-118 Connector End View (Except Evolution)

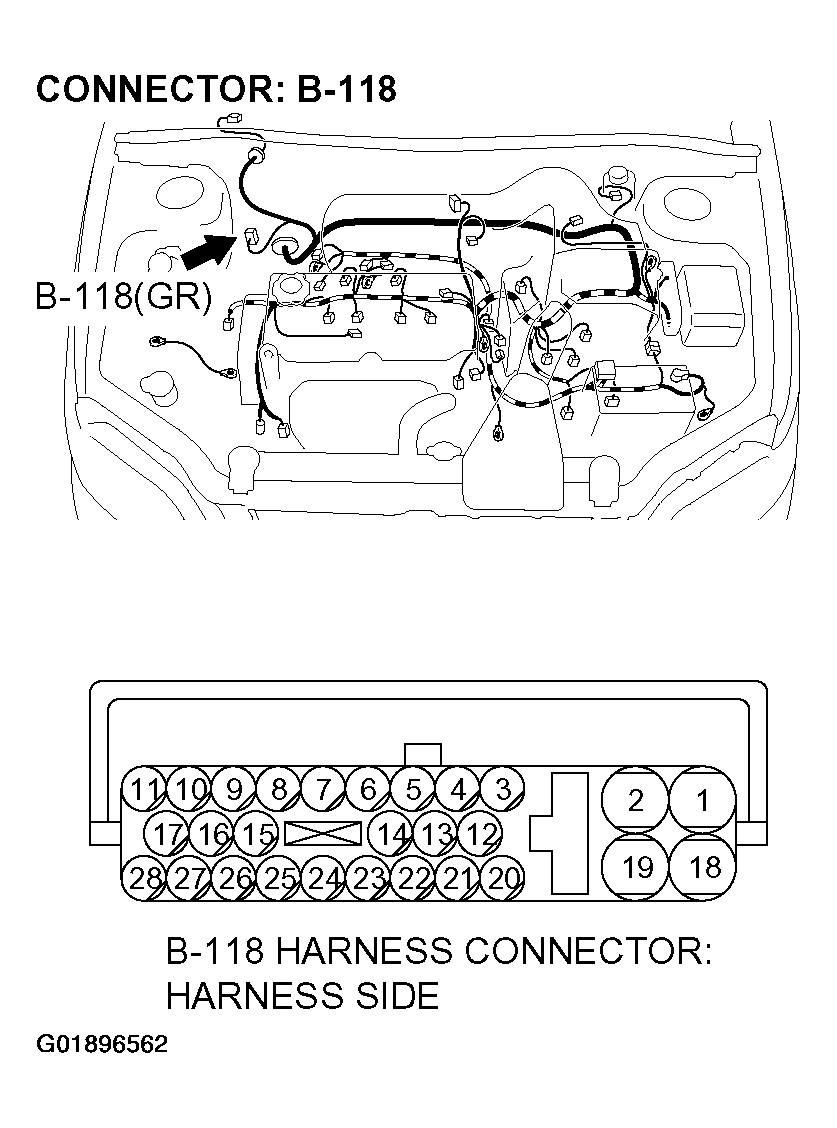

Fig 1: Connector B-118 Connector End View (Except Evolution)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
