Engine Control Module Connector C-119 (M/T) Connector End View (Except Evolution)

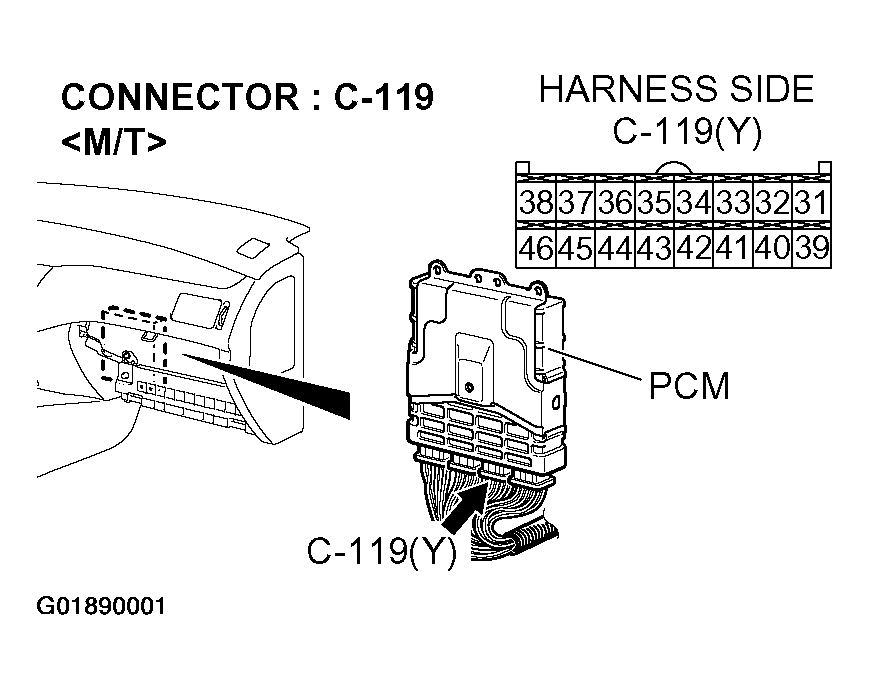

Fig 1: Engine Control Module Connector C-119 (M/T) Connector End View (Except Evolution)
G01890001Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
