Engine Control Module Connector C-121 Connector End View (Evolution)
Engine Control Module Connector C-121 Connector End View (Evolution)

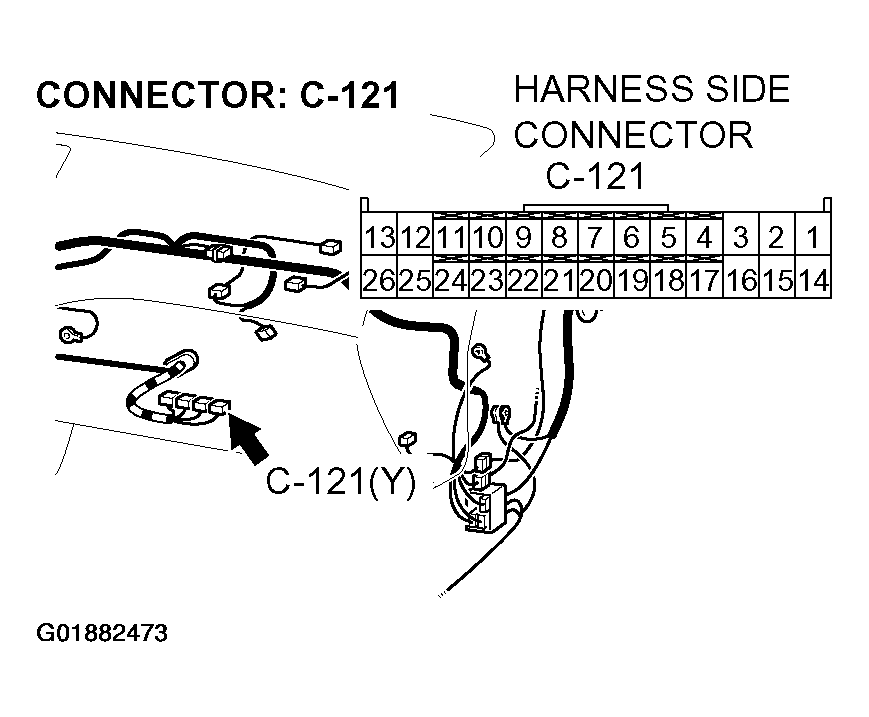

Fig 1: Engine Control Module Connector C-121 Connector End View (Evolution)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
