Front-ECU Connector A-10X Connector End View (Evolution)
Front-ECU Connector A-10X Connector End View (Evolution)

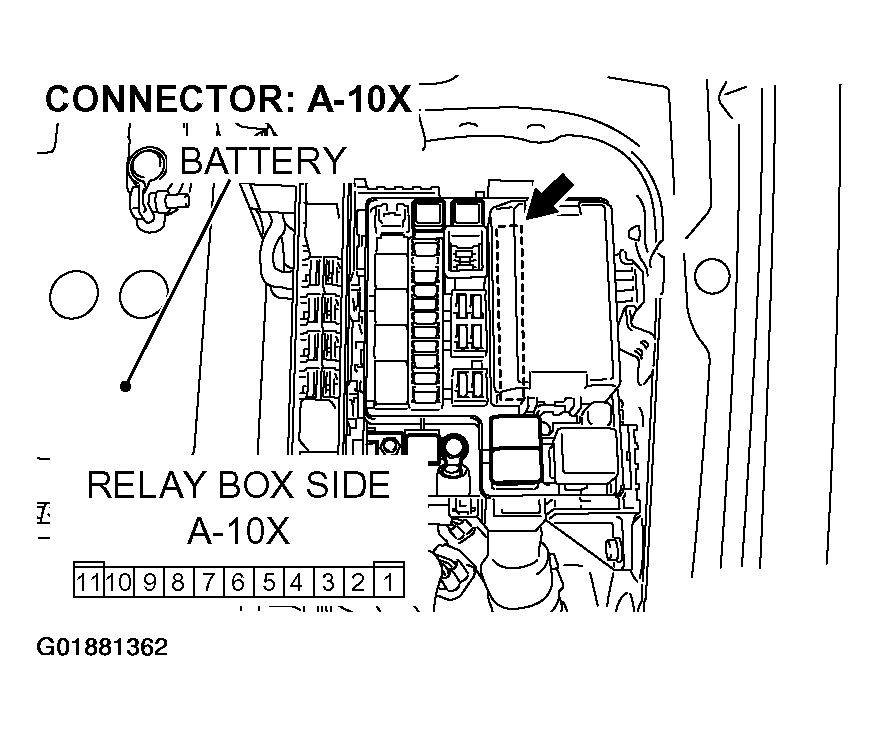

Fig 1: Front-ECU Connector A-10X Connector End View (Evolution)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
