Intermediate Connector A-29 Connector End View (Evolution)
Intermediate Connector A-29 Connector End View (Evolution)

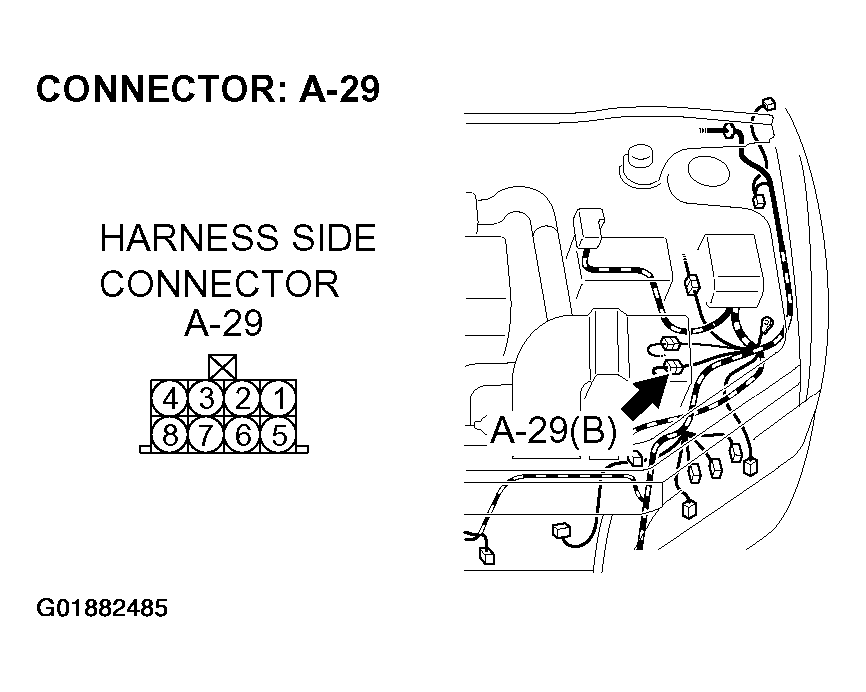

Fig 1: Intermediate Connector A-29 Connector End View (Evolution)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
