Power Window Sub Switch Connector E-14 Connector End View (Front) (Evolution)

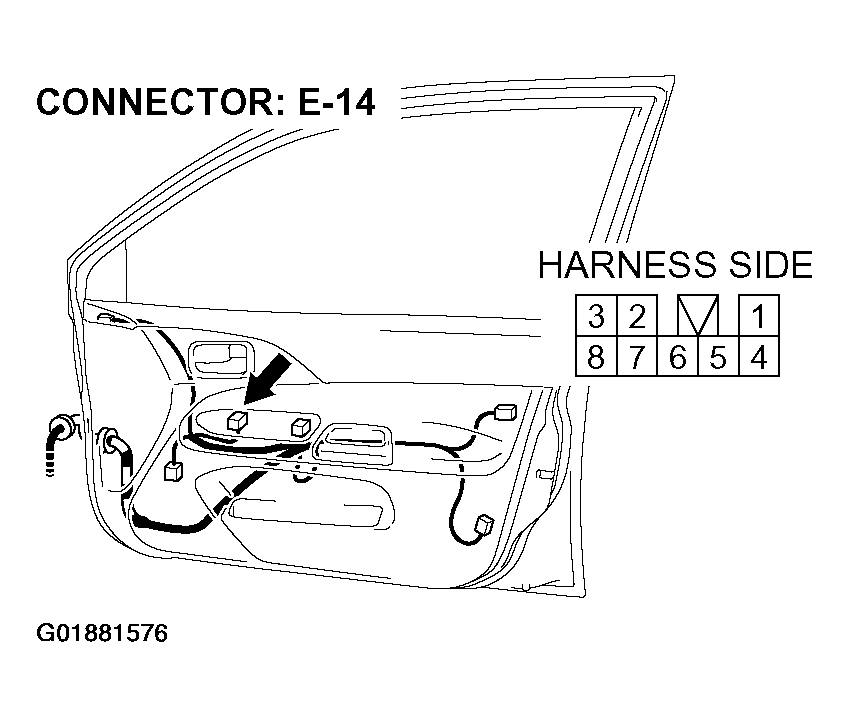

Fig 1: Power Window Sub Switch Connector E-14 Connector End View (Front) (Evolution)
G01881576Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
