Disassembly And Assembly

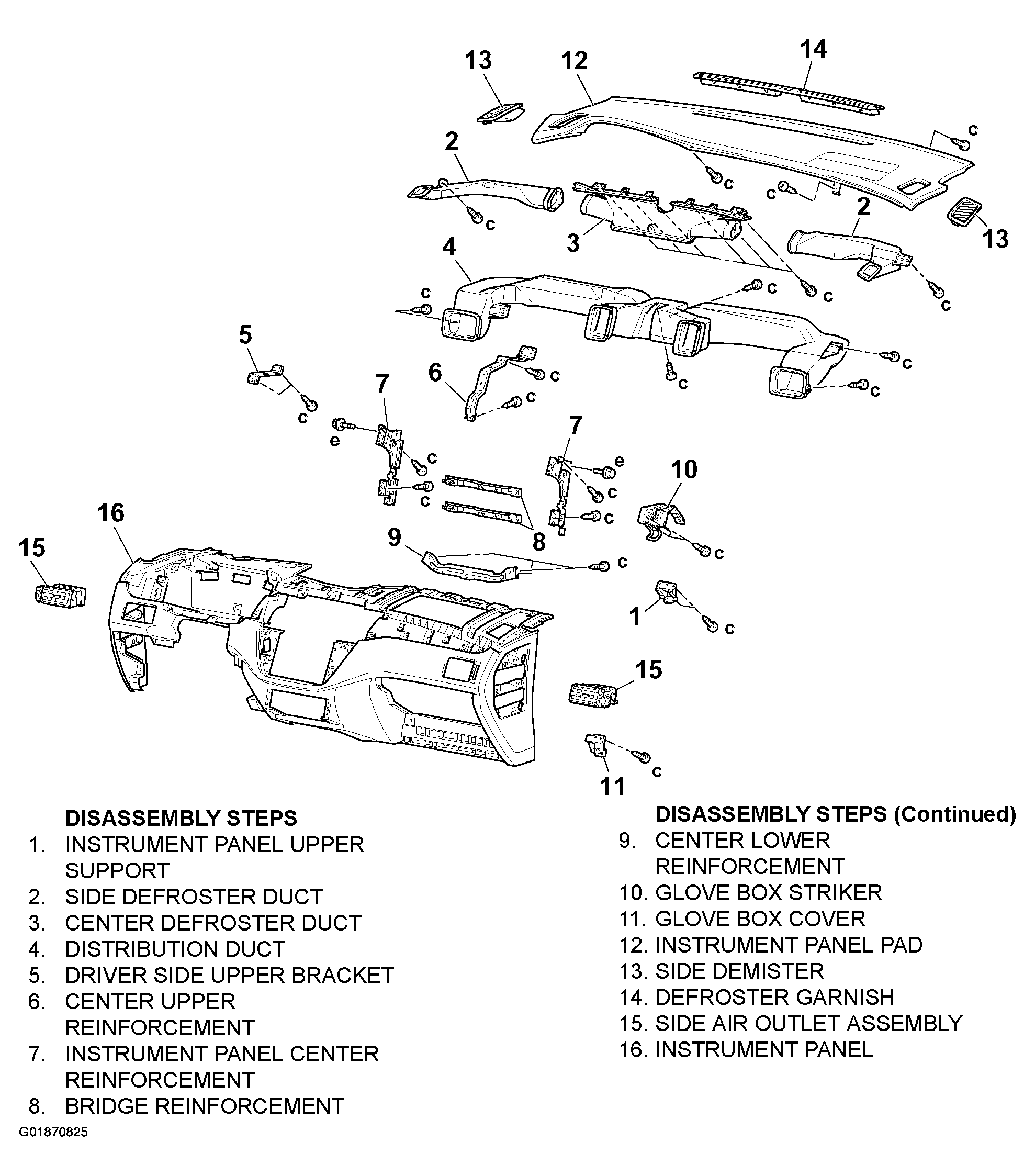

Fig 1: Exploded View Of Instrument Panel
G01870825Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
