Component Locations

COMPONENT LOCATIONS

Component

Location

Cooling Fan

⁽¹⁾ Behind Radiator

Fan Control Module

⁽¹⁾ Attached To Radiator Fan Shroud

Fan Control Relay

In Engine Compartment Fuse/Relay Box

Fusible Link No. 2

⁽²⁾ In Engine Compartment Fuse/Relay Box

⁽¹⁾	See Figure .

⁽²⁾	See Fig 1 .

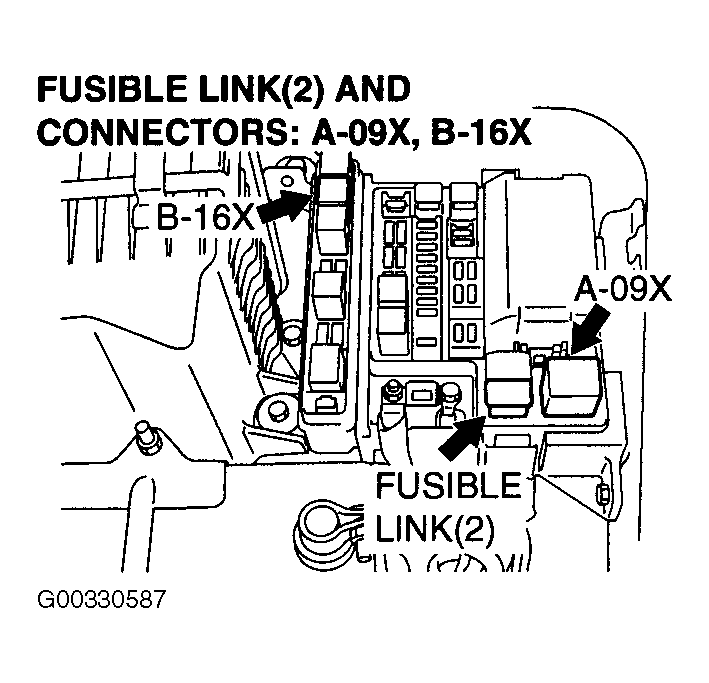

Fig 1: Locating Fusible Link No. 2

G00330587

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
