Repair and Diagnosis
›
Engine Mechanical
›
Intake And Exhaust - Evolution
›
Intake Manifold
›
Removal And Installation
›
Notes
Removal And Installation: Notes

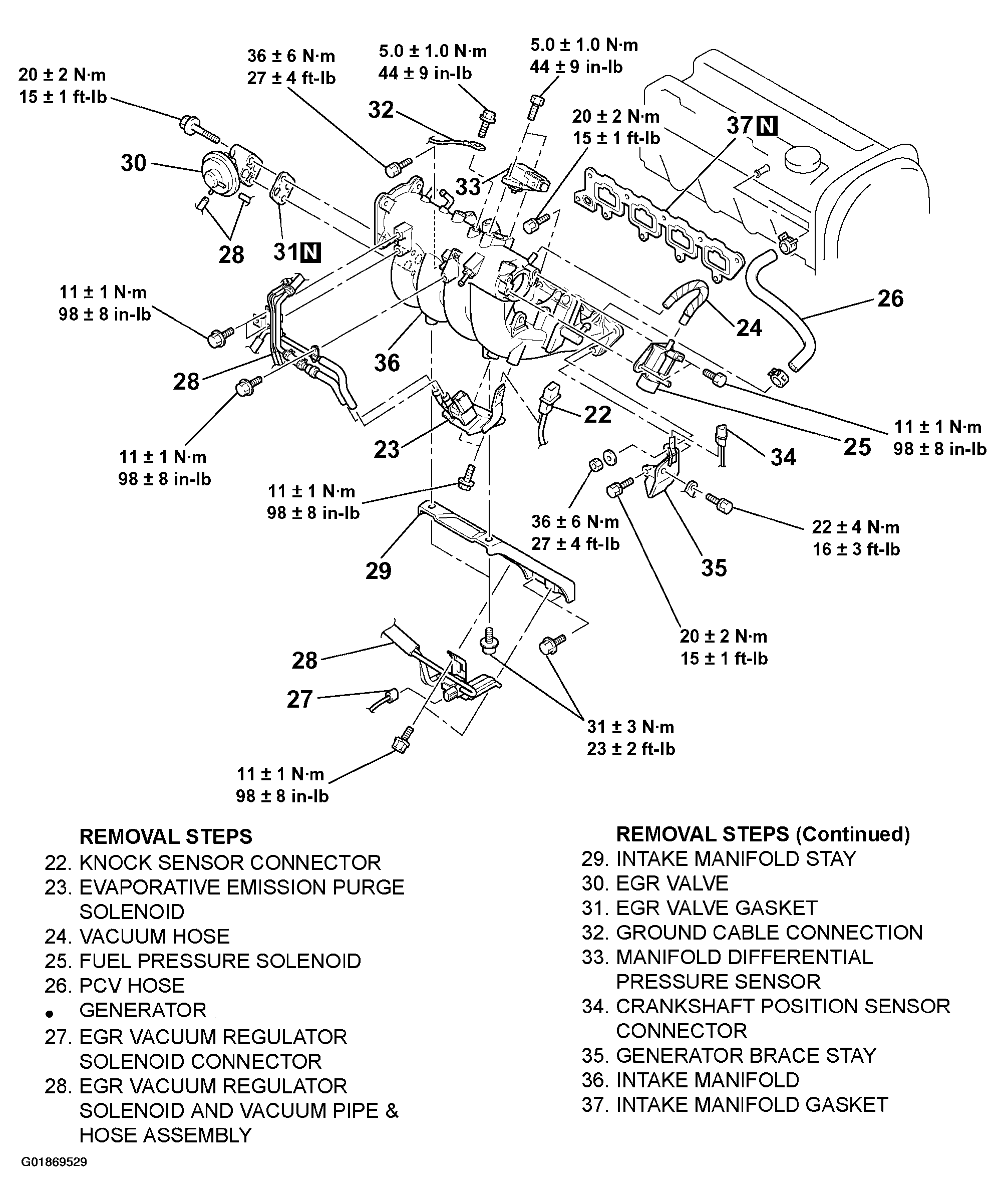

Fig 1: Intake Manifold Removing Procedure And Torque Specifications (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

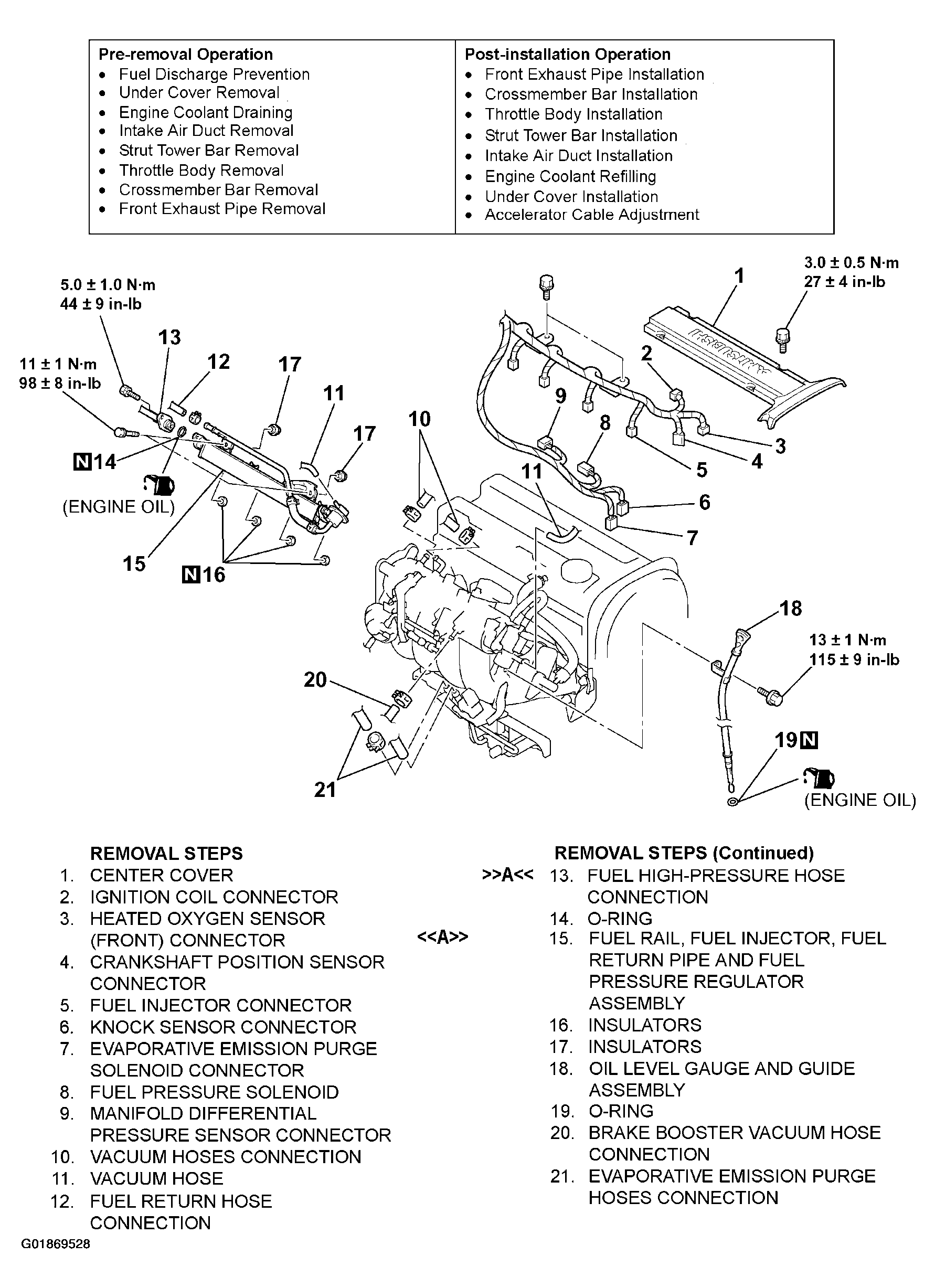

Fig 2: Intake Manifold Removing Procedure And Torque Specifications (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
