Removal And Installation: Notes

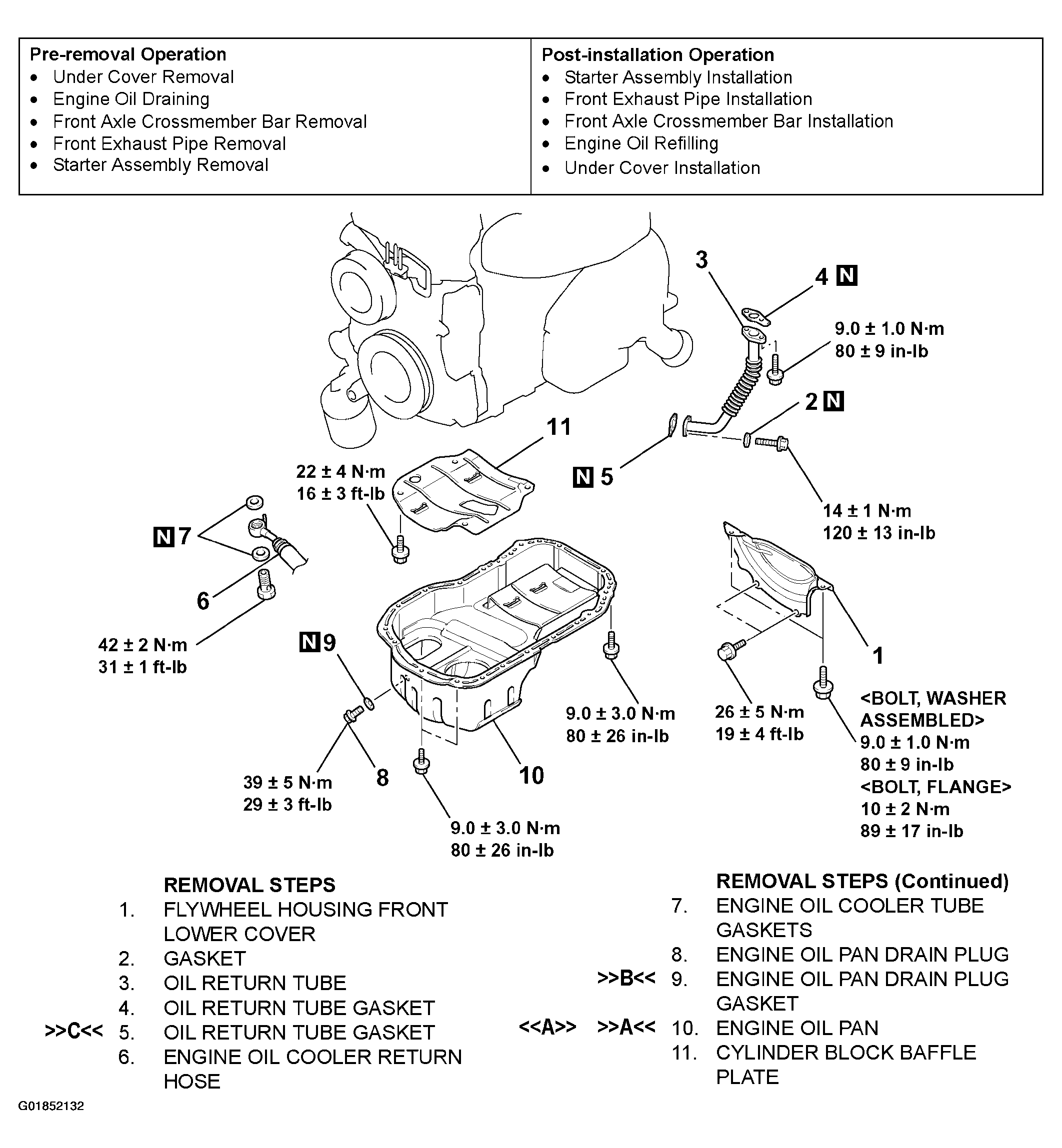

Fig 1: Exploded View Of Oil Pan Components With Torque Specifications

G01852132

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MD998727: Oil Pan Remover
