CAUTION:
*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

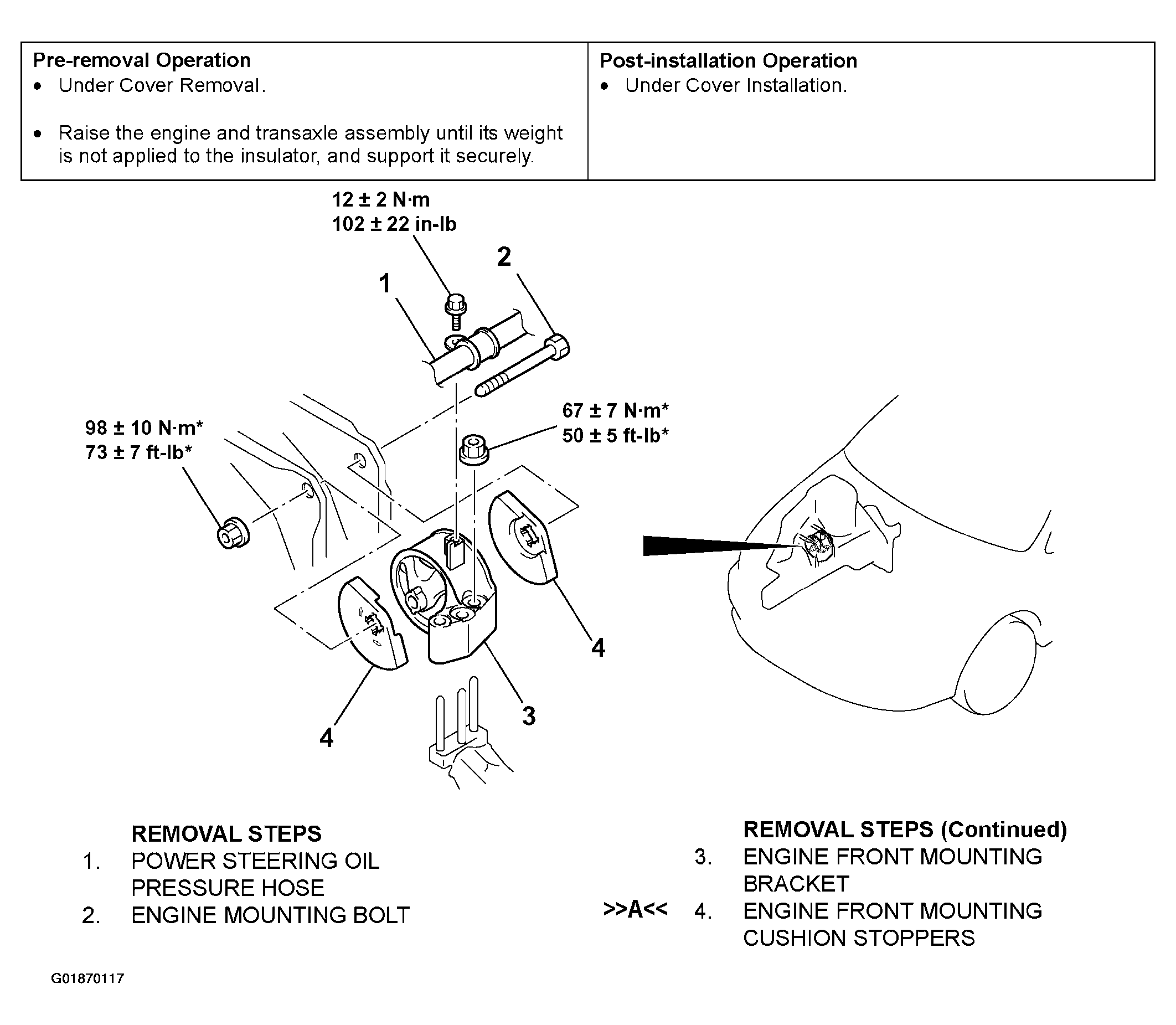

Fig 1: Exploded View And Torque Specification Of Engine Mounting
