Ignition System - Evolution
›
Ignition Coil
›
Removal And Installation
Removal And Installation

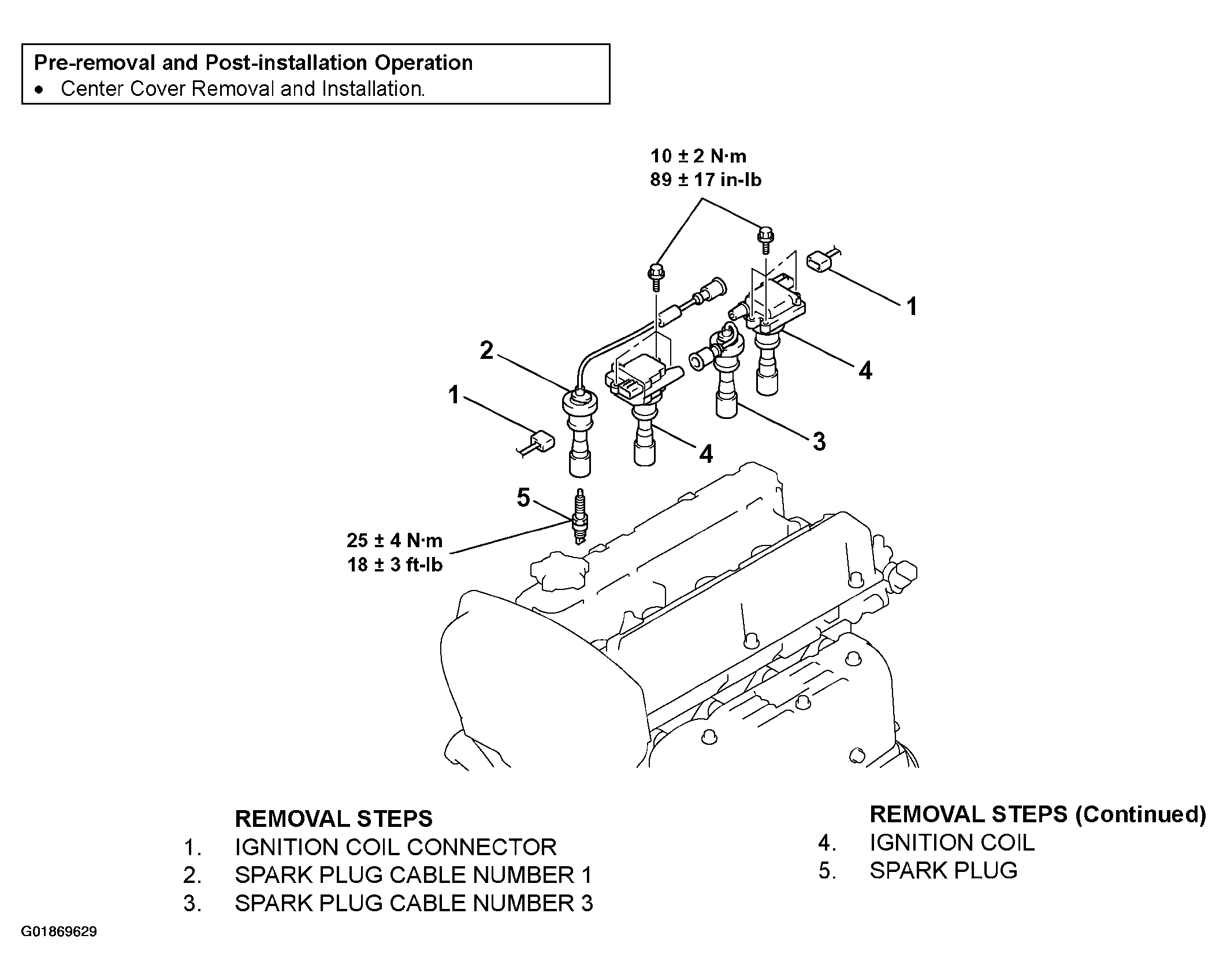

Fig 1: Ignition Coil Removing Procedure And Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
