Actuator Test Reference Data

For actuator test, see Fig 1 and Fig 2 .

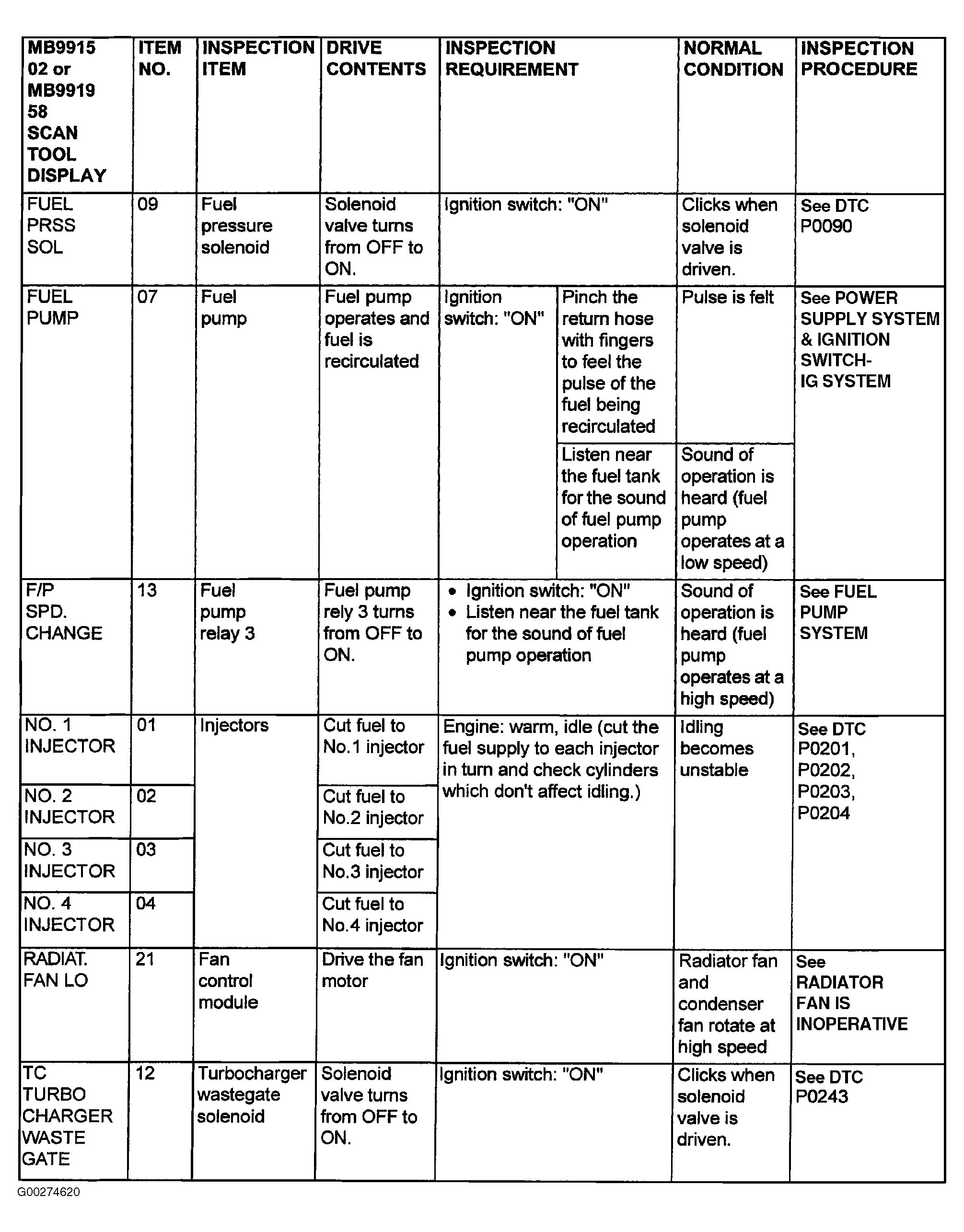

Fig 1: Identifying Actuator Test Reference Table (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

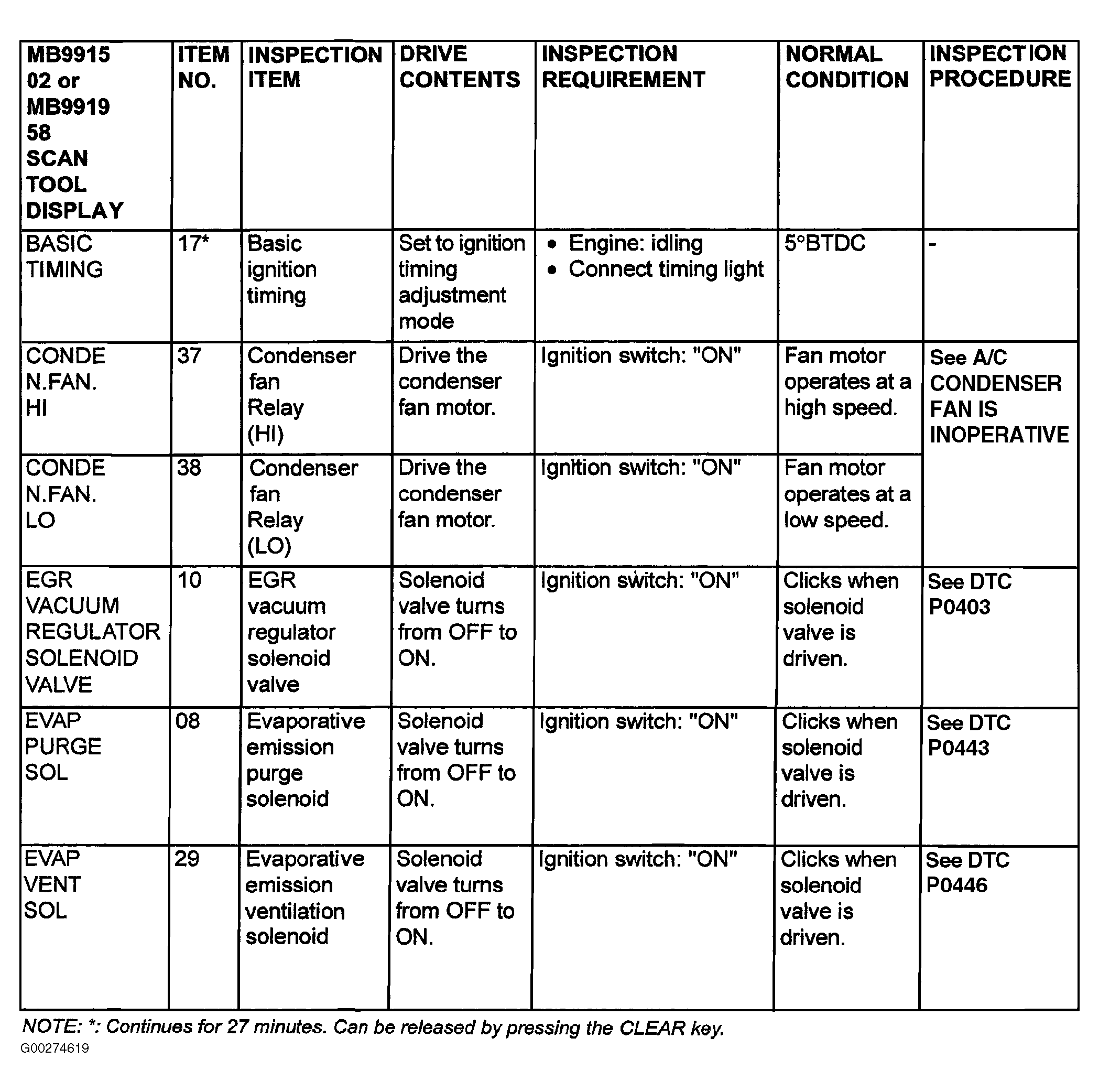

Fig 2: Identifying Actuator Test Reference Table (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
