Section 217 (Combination Meters)
›
Combination Meters
›
CAN Communication System Description
›
For M/T Models
›
Input/Output Signal Chart
Input/Output Signal Chart
WARNING:
This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

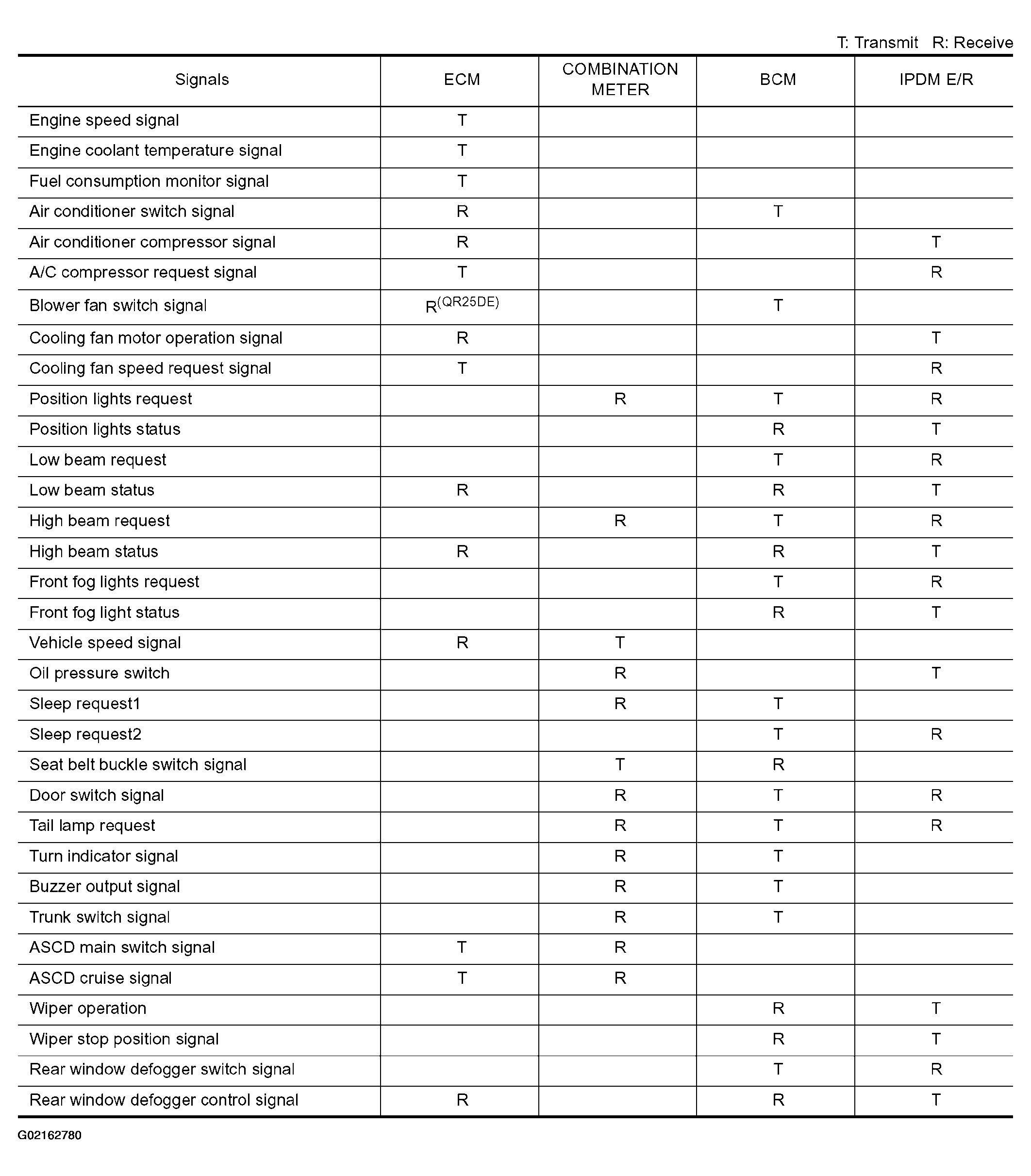

Fig 1: M/T Models Input/Output Signal Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
