Flasher Timer

WARNING: This page is about a different variant/trim than selected.

The ECU related to the alarm function types and various control functions are as follows, see Fig 1 and Fig 2 .

Fig 1: Identifying Flasher Timer Functions & Control-ECU's

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

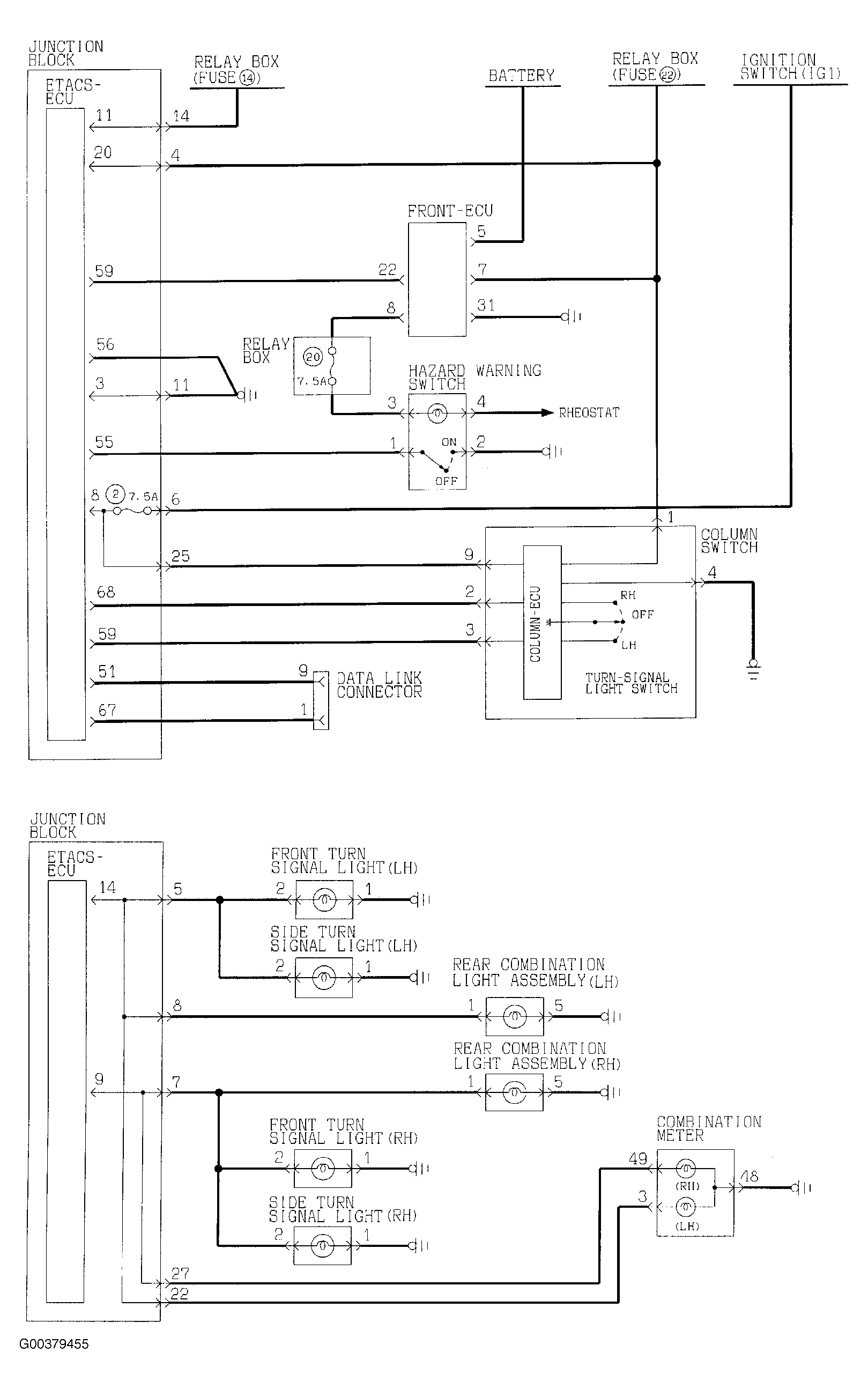

Fig 2: Identifying Turn Signal Light & Hazard Light Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
