Section 11 (Simplified Wiring System (SWS) - Except Evolution): Description: Sunroof

WARNING: This page is about a different variant/trim than selected.

The following ECU's affect the functions and control of the sunroof. See Fig 1.

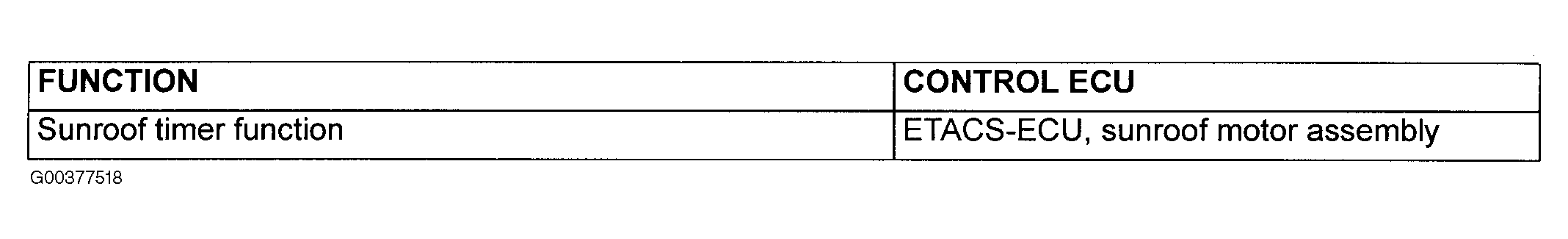

Fig 1: Identifying Sunroof Function & Control-ECU

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
