Function Diagnosis: Lighting

WARNING: This page is about a different variant/trim than selected.

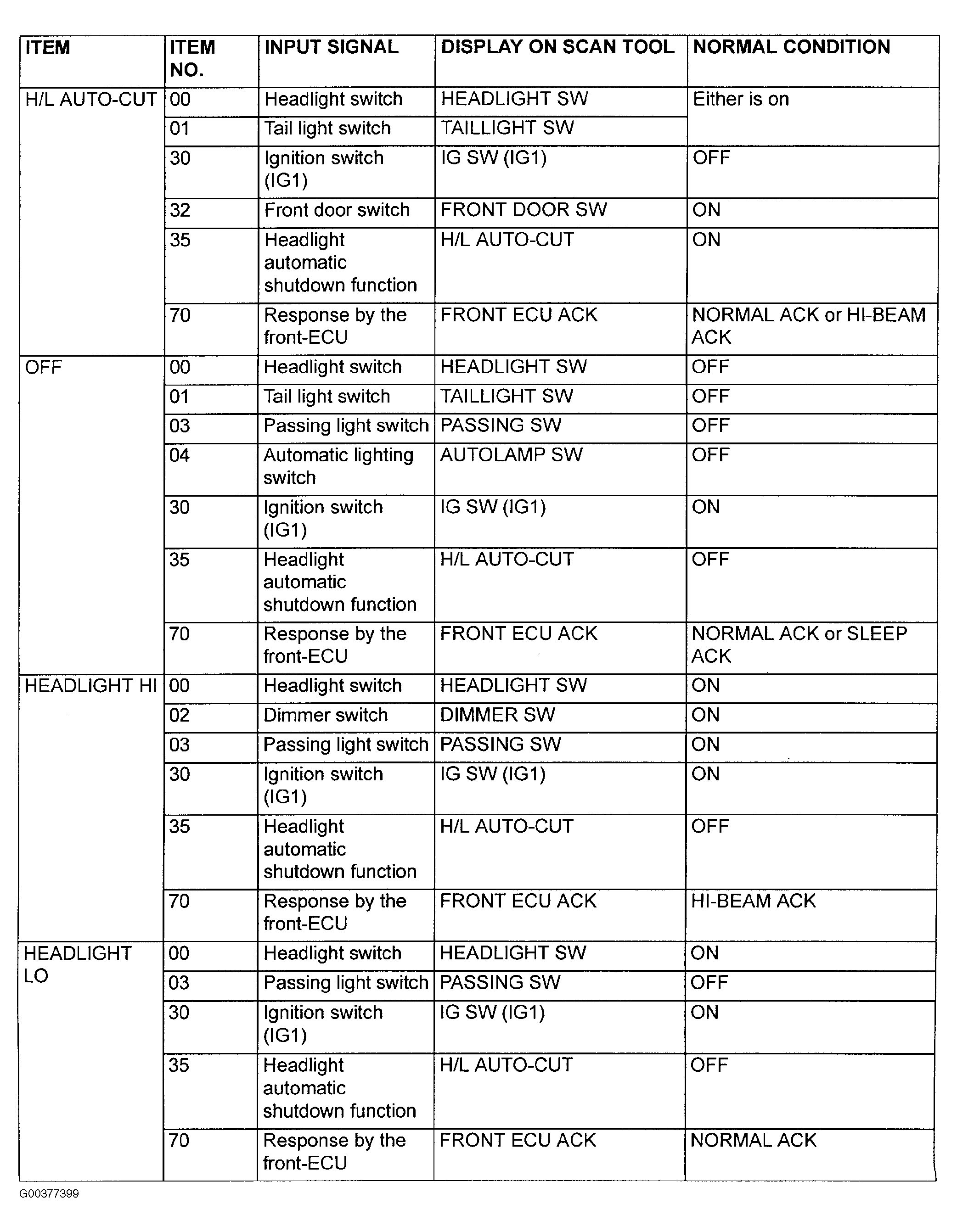

Fig 1: Function Diagnosis - Lighting (1 Of 2)
G00377399Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

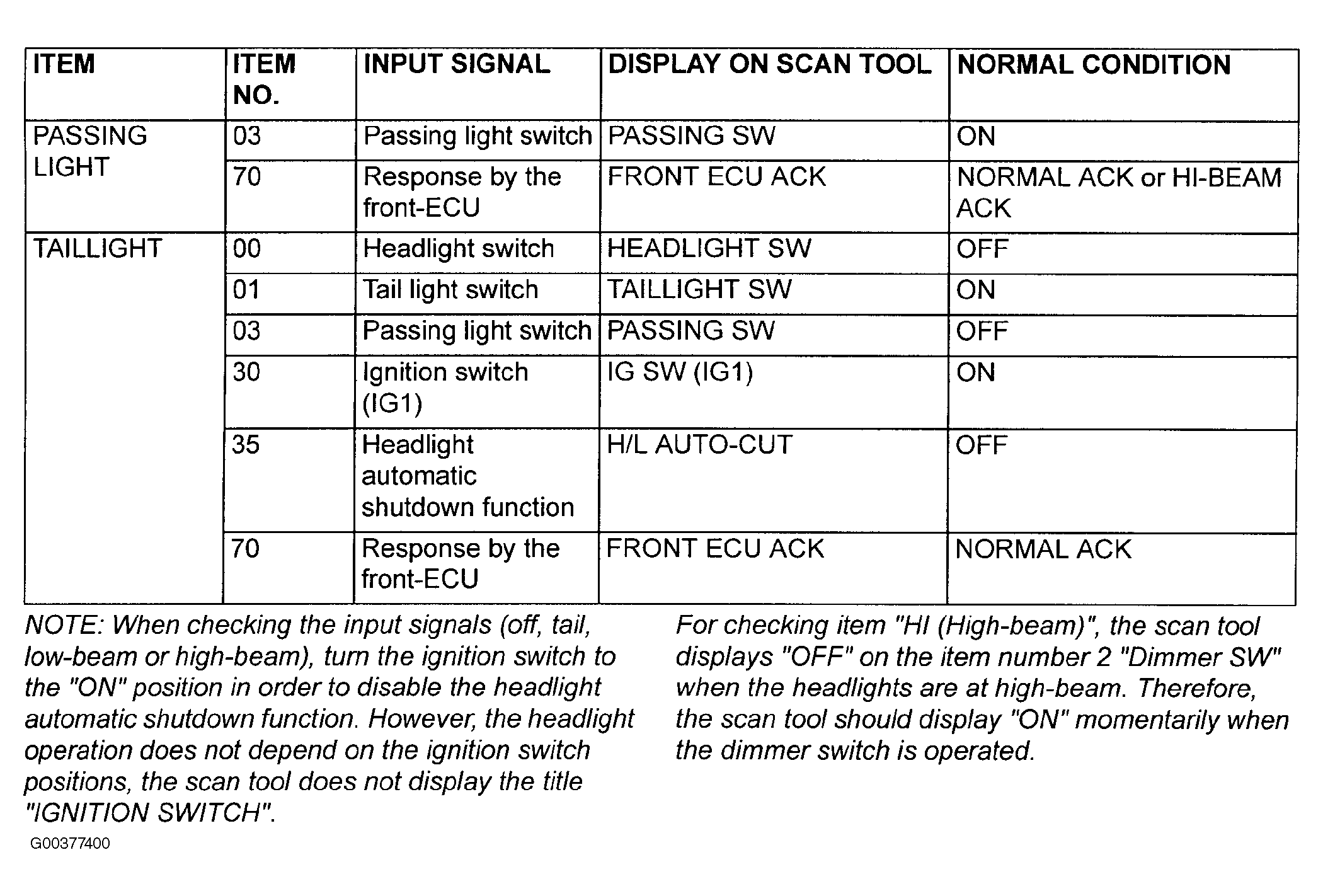

Fig 2: Function Diagnosis - Lighting (2 Of 2)
G00377400Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
