How To Connect SWS Monitor

WARNING: This page is about a different variant/trim than selected.

CAUTION: Always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting the SWS monitor kit and scan tool MB991502. Connect the DLC harness before connecting the column-ECU harness. Be sure to connect SWS monitor kit MB991862 after turning on the scan tool MB991502.

Remove the steering column cover.
Remove the steering column switch connector. See Fig 1.
Connect the SWS monitor harness (for column-ECU).

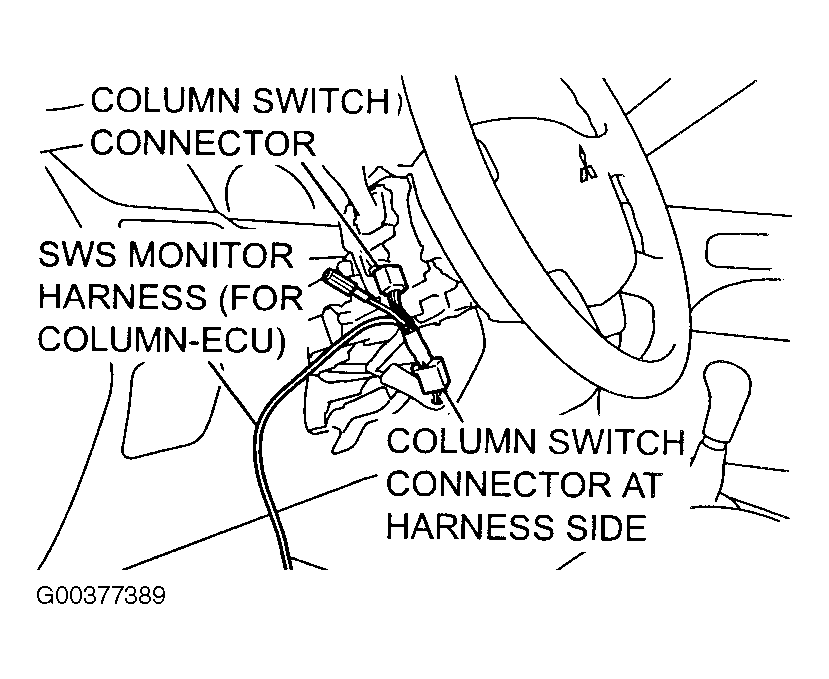

Fig 1: Connecting SWS Monitor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
