Section 11 (Simplified Wiring System (SWS) - Except Evolution)
›
SWS Diagnosis
›
How To Use SWS Monitor
How To Use SWS Monitor
WARNING:
This page is about a different variant/trim than selected.

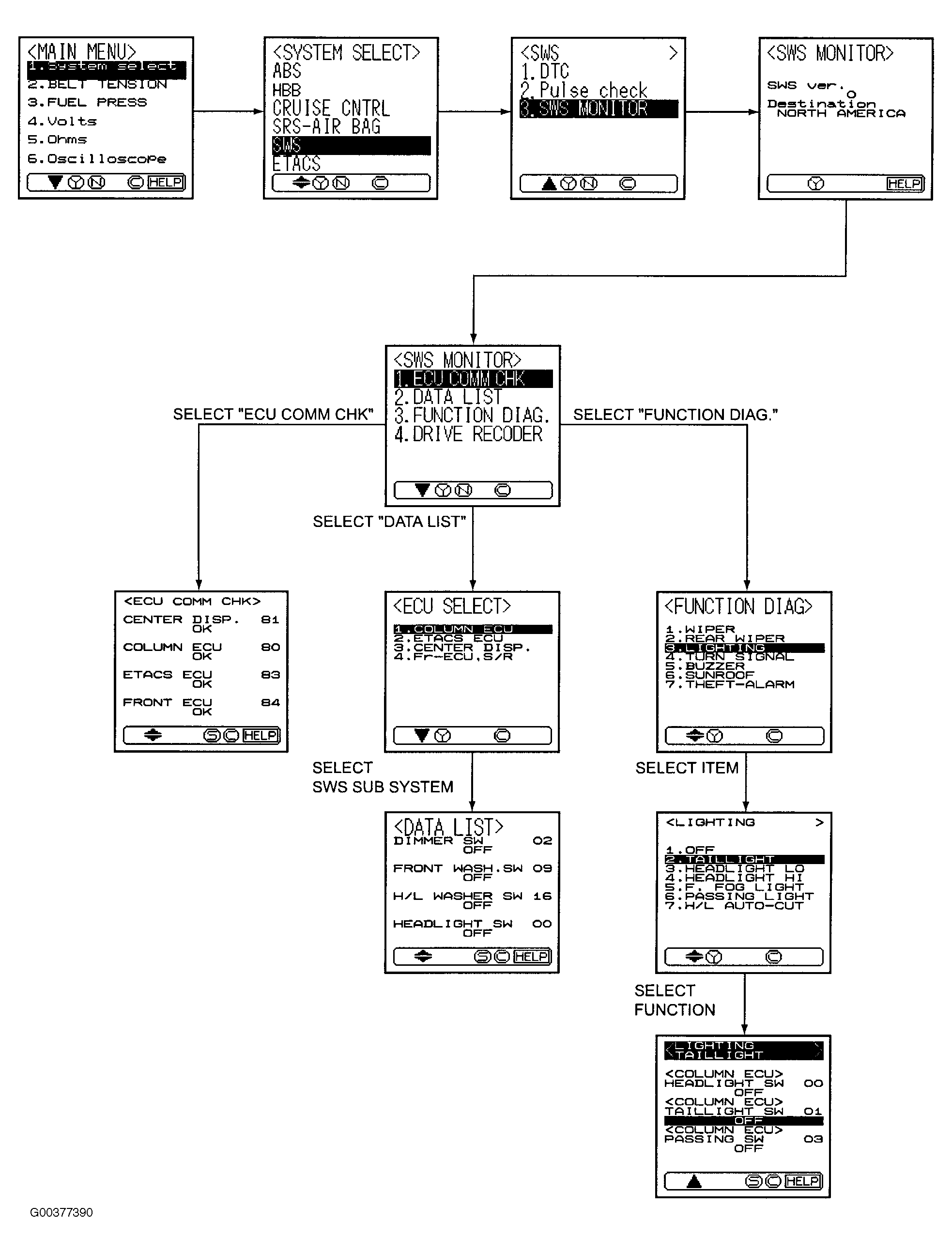

Fig 1: Using SWS Monitor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
