Inspection Procedure D-2: Power Windows: The Power Window Timer Function Does Not Work Normally
›
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

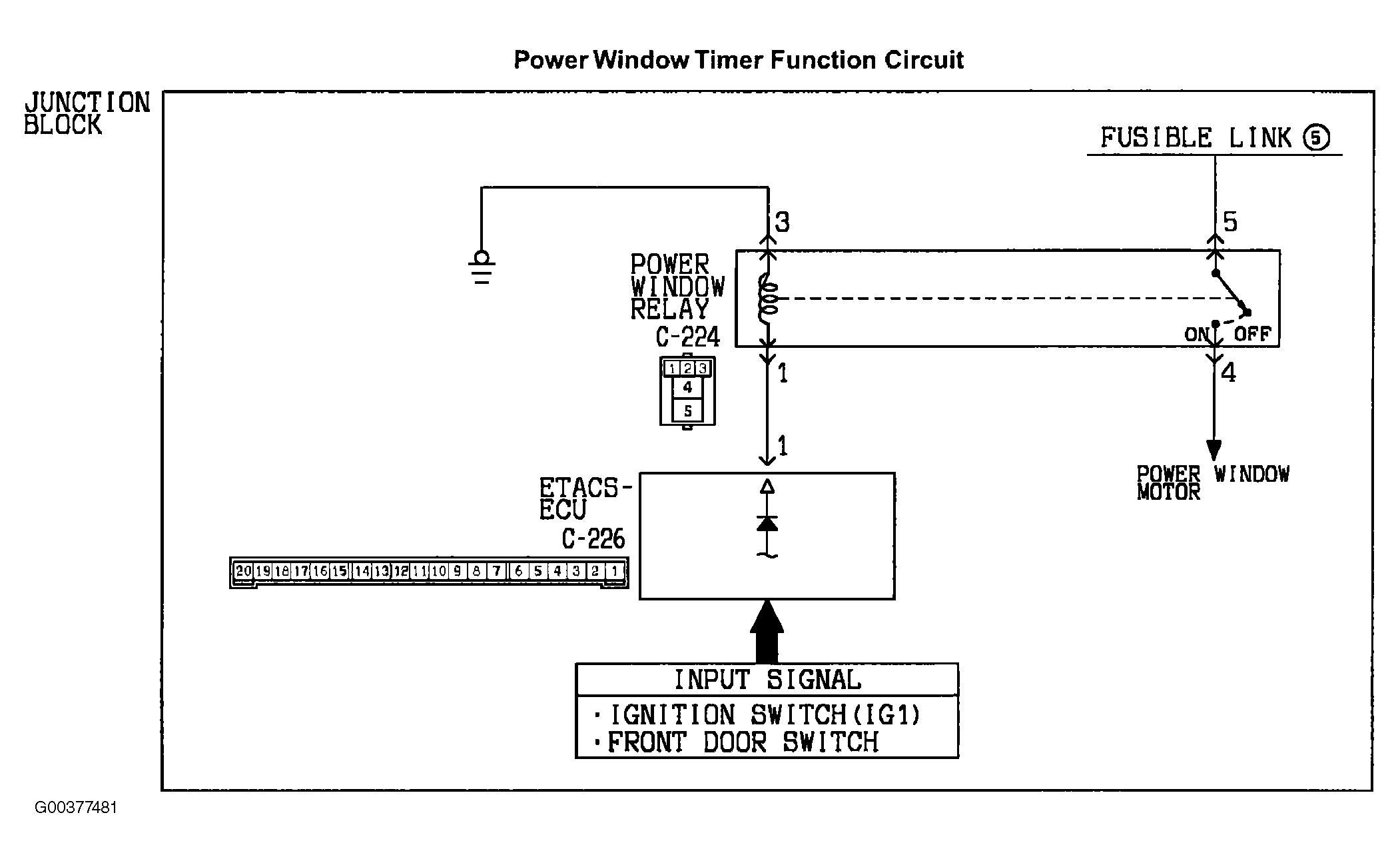

Fig 1: Power Window Timer Function Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
