Section 12 (On-Vehicle Service- Except Evolution)
›
Engine Diagnosis
Engine Diagnosis
WARNING:
This page is about a different variant/trim than selected.

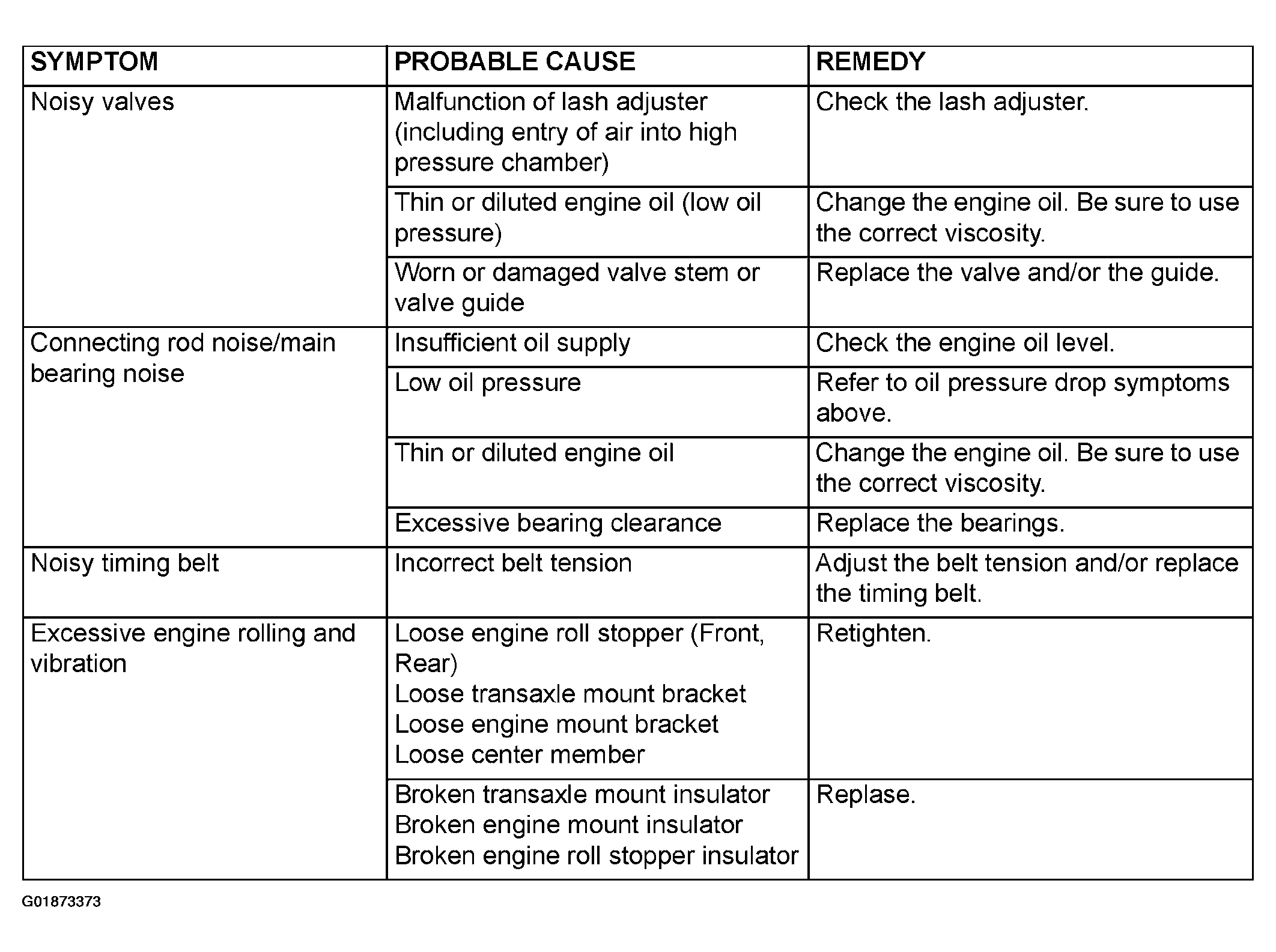

Fig 1: Symptom Troubleshooting Chart - Engine (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

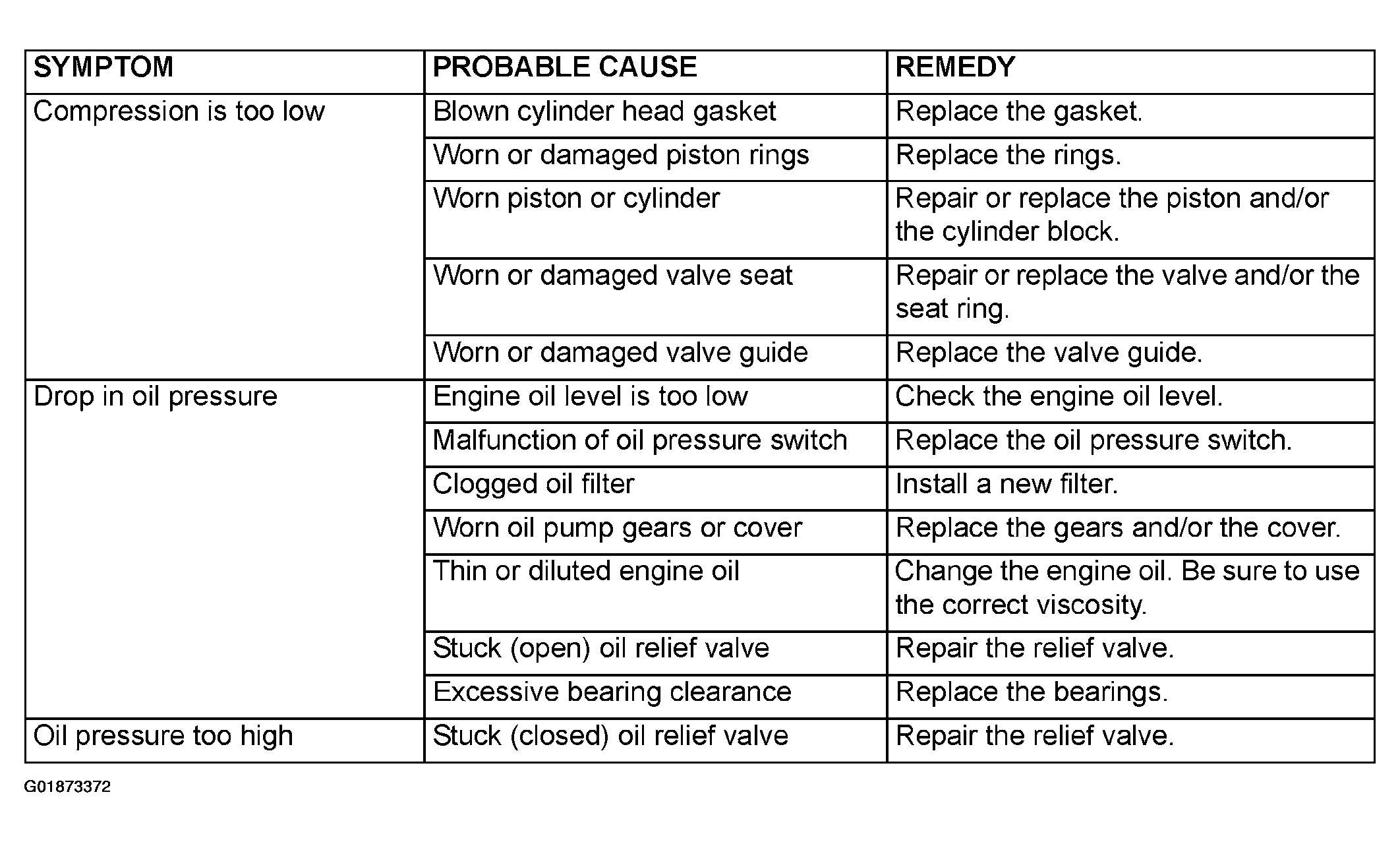

Fig 2: Symptom Troubleshooting Chart - Engine (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
