Removal And Installation

WARNING: This page is about a different variant/trim than selected.

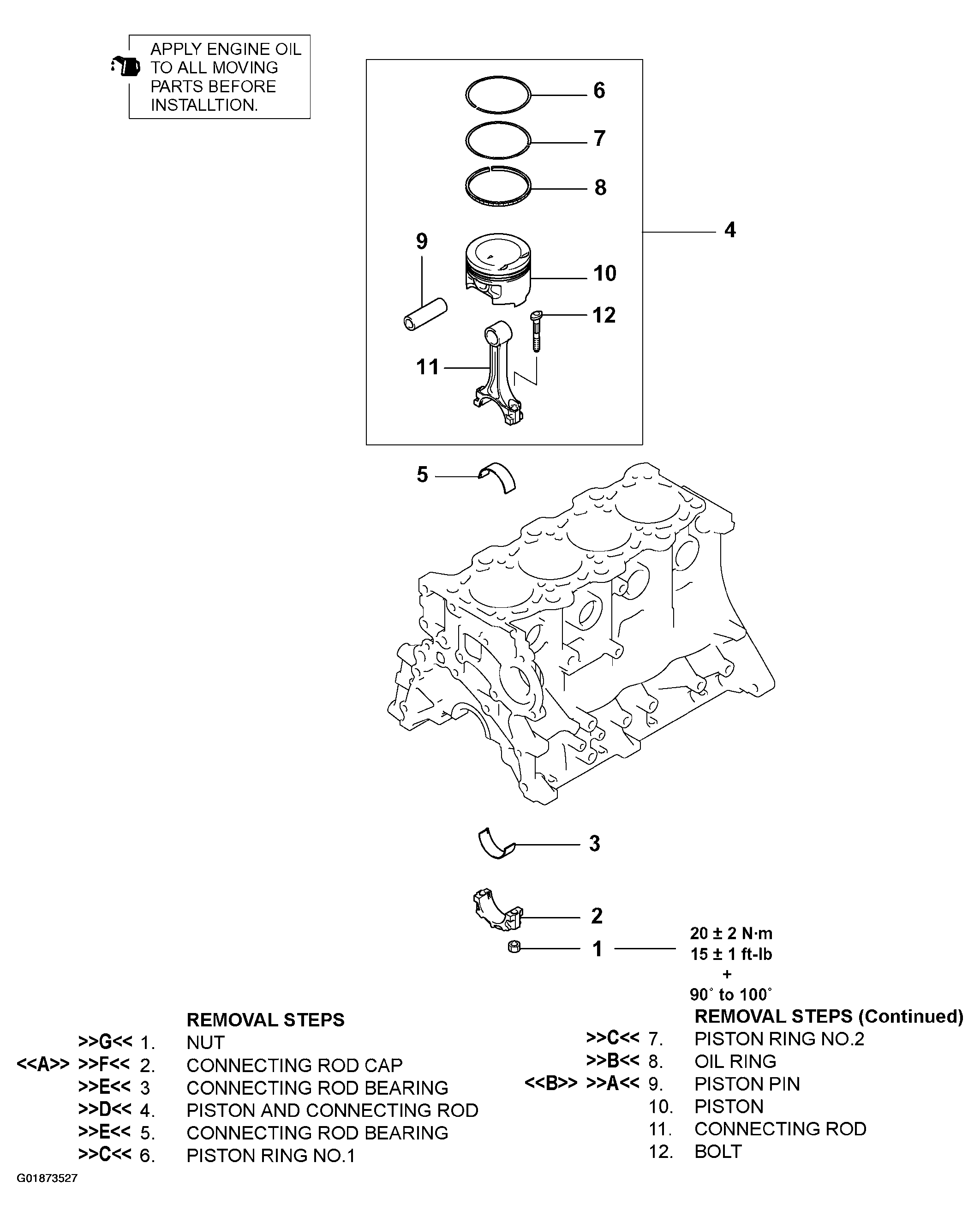

Fig 1: Exploded View Of Piston And Connecting Rod

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tool:
