Power Steering Hoses
›
Removal And Installation
›
Notes
Removal And Installation: Notes

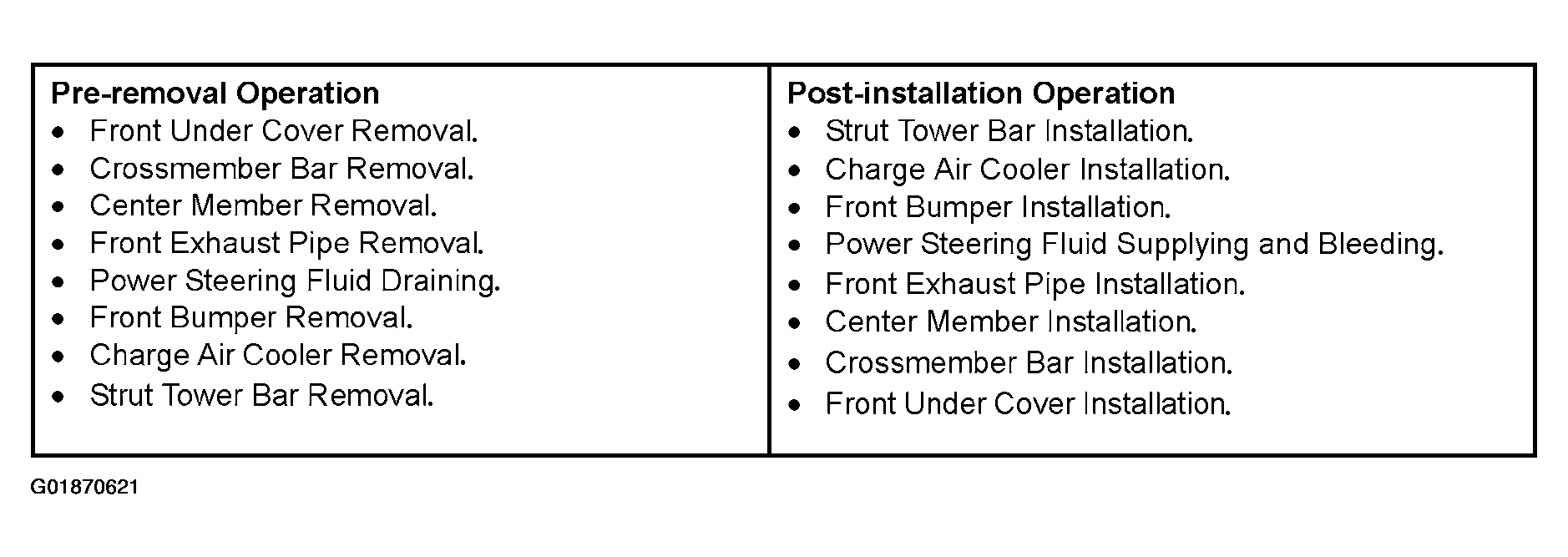

Fig 1: Power Steering Hoses Pre-Removal And Post-Installation Operation Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

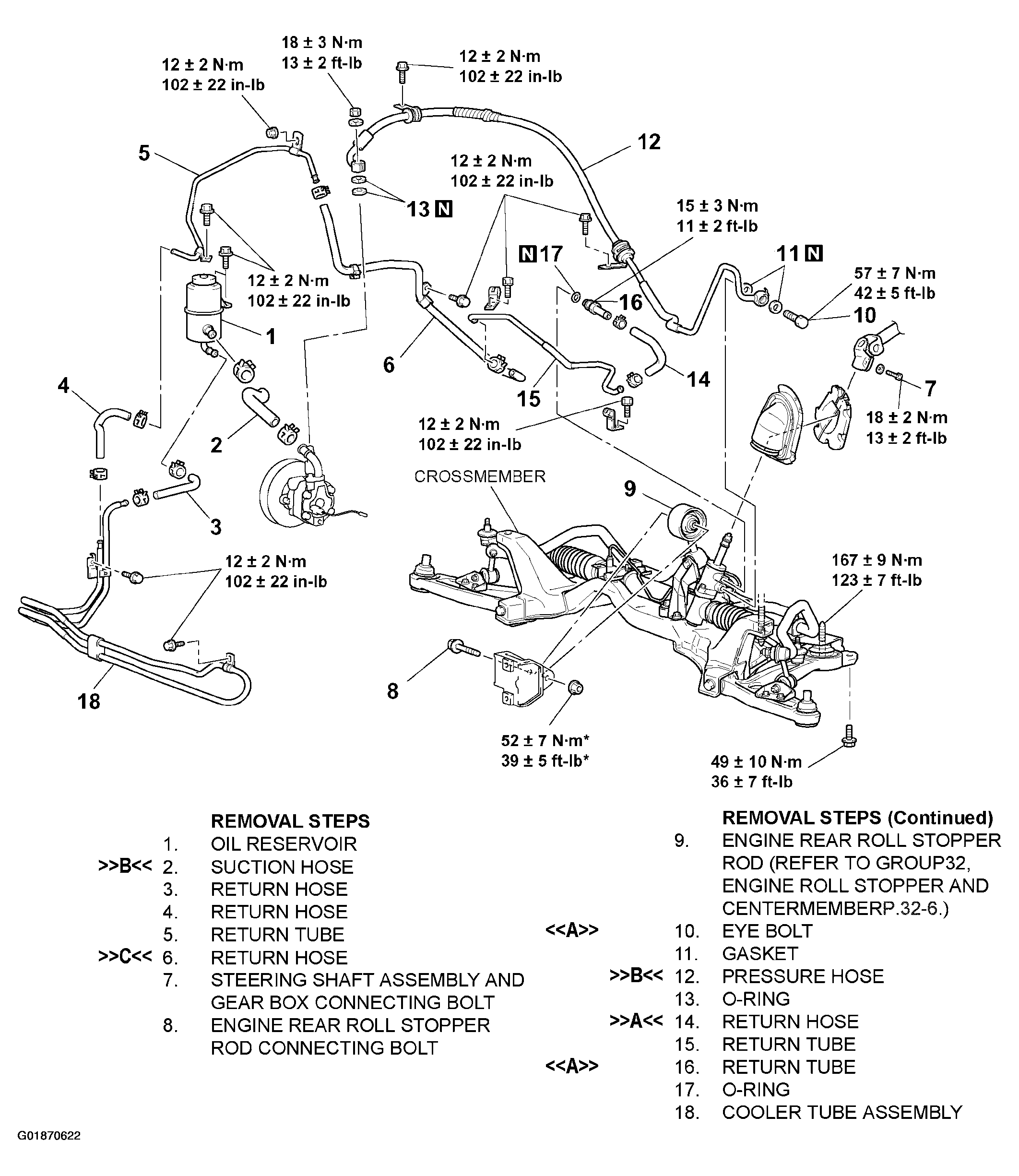

Fig 2: Power Steering Hoses And Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
