Power Steering Oil Pump Assembly
›
Disassembly And Assembly
Disassembly And Assembly

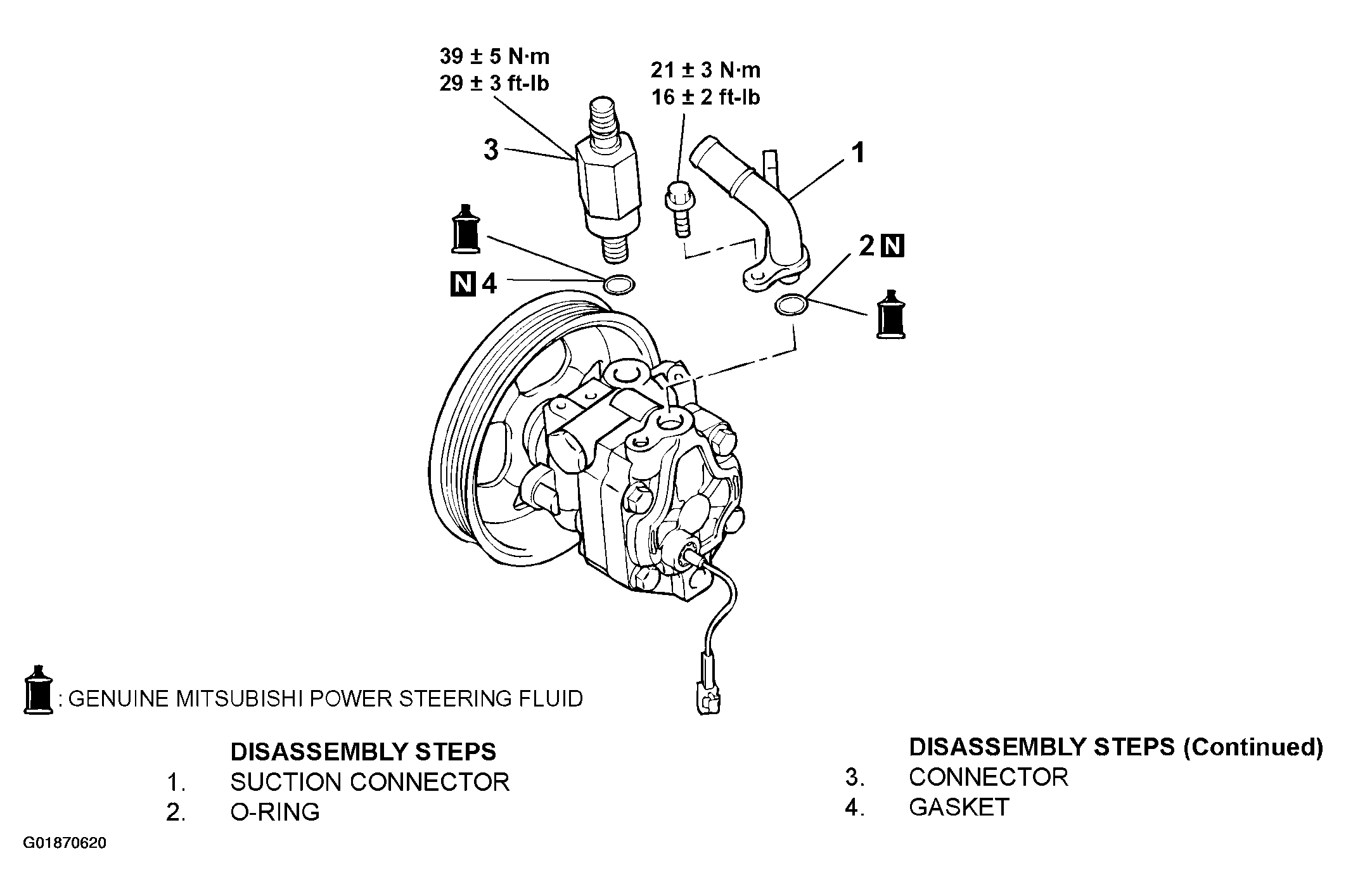

Fig 1: Suction Connector, Connector O-Ring And Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
