Steering - Evolution
›
Power Steering Oil Pump Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes

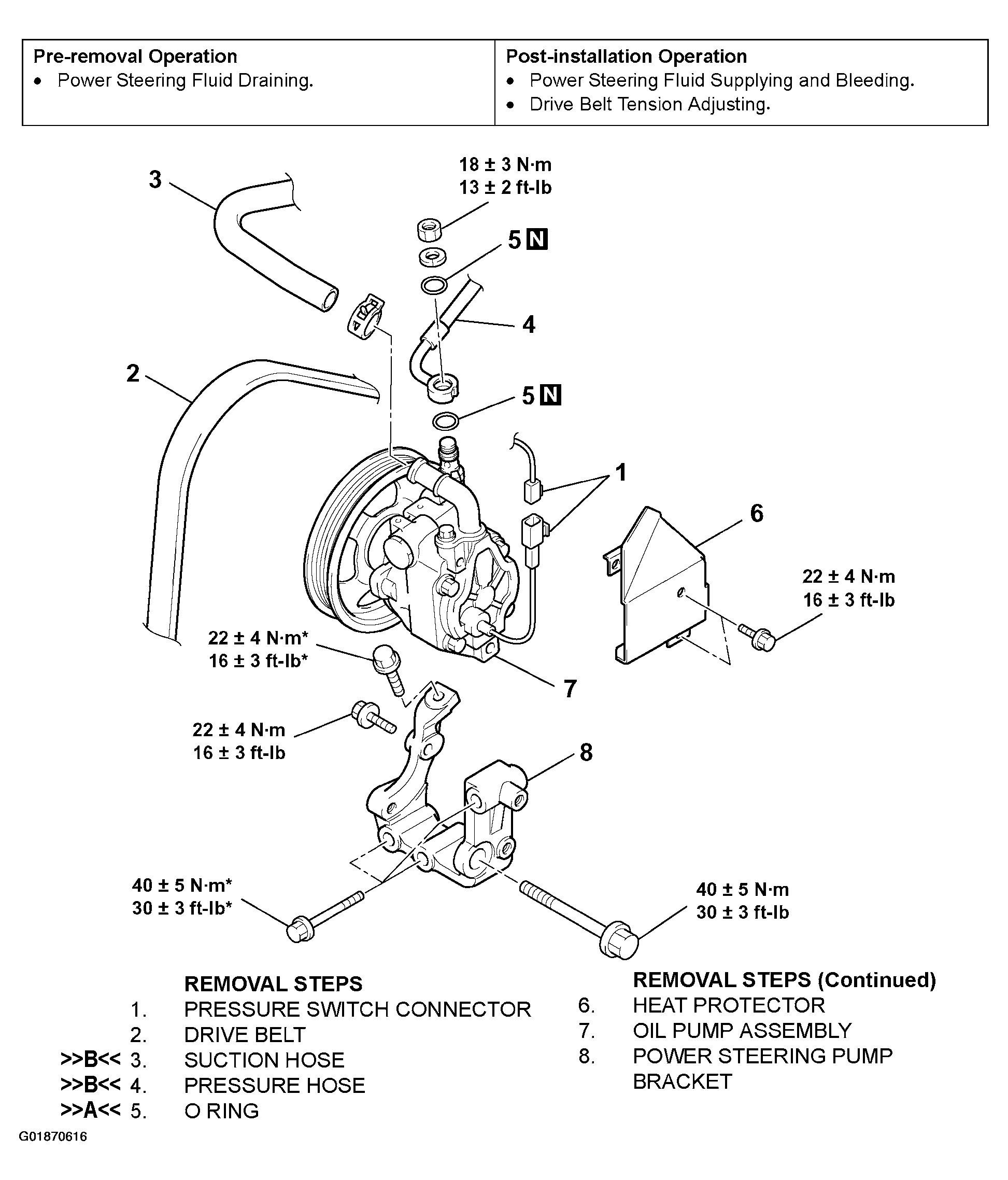

Fig 1: Exploded View And Torque Specifications Of Power Steering Oil Pump Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
