Clutch - Evolution
›
Clutch Control
›
Removal And Installation
Removal And Installation

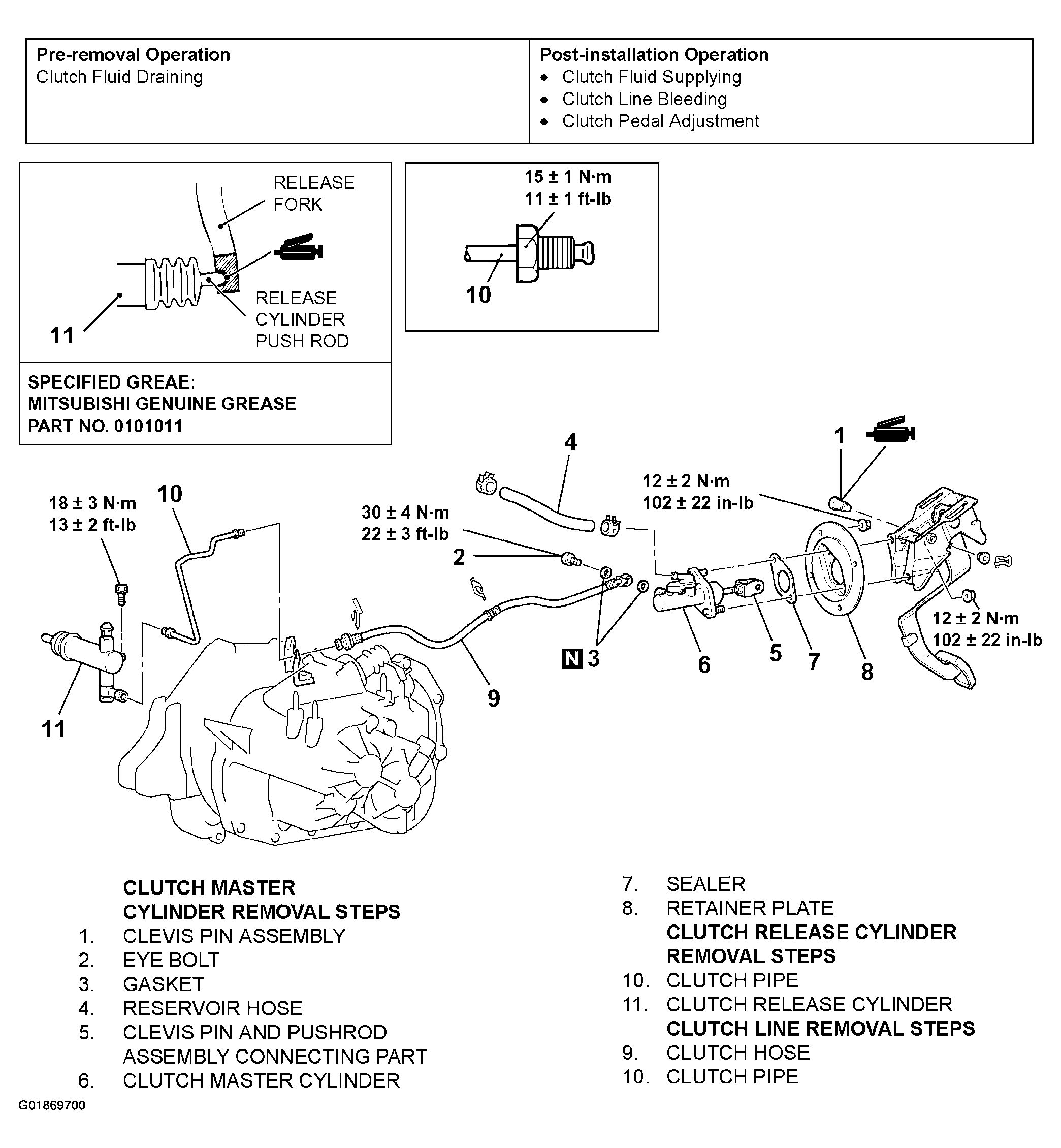

Fig 1: Exploded View Of Clutch Control
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
