Notes
Removal And Installation: Notes
WARNING:
Be careful not to subject the SRS-ECU to any shocks during removal and installation of the shift cable and select cable assembly.

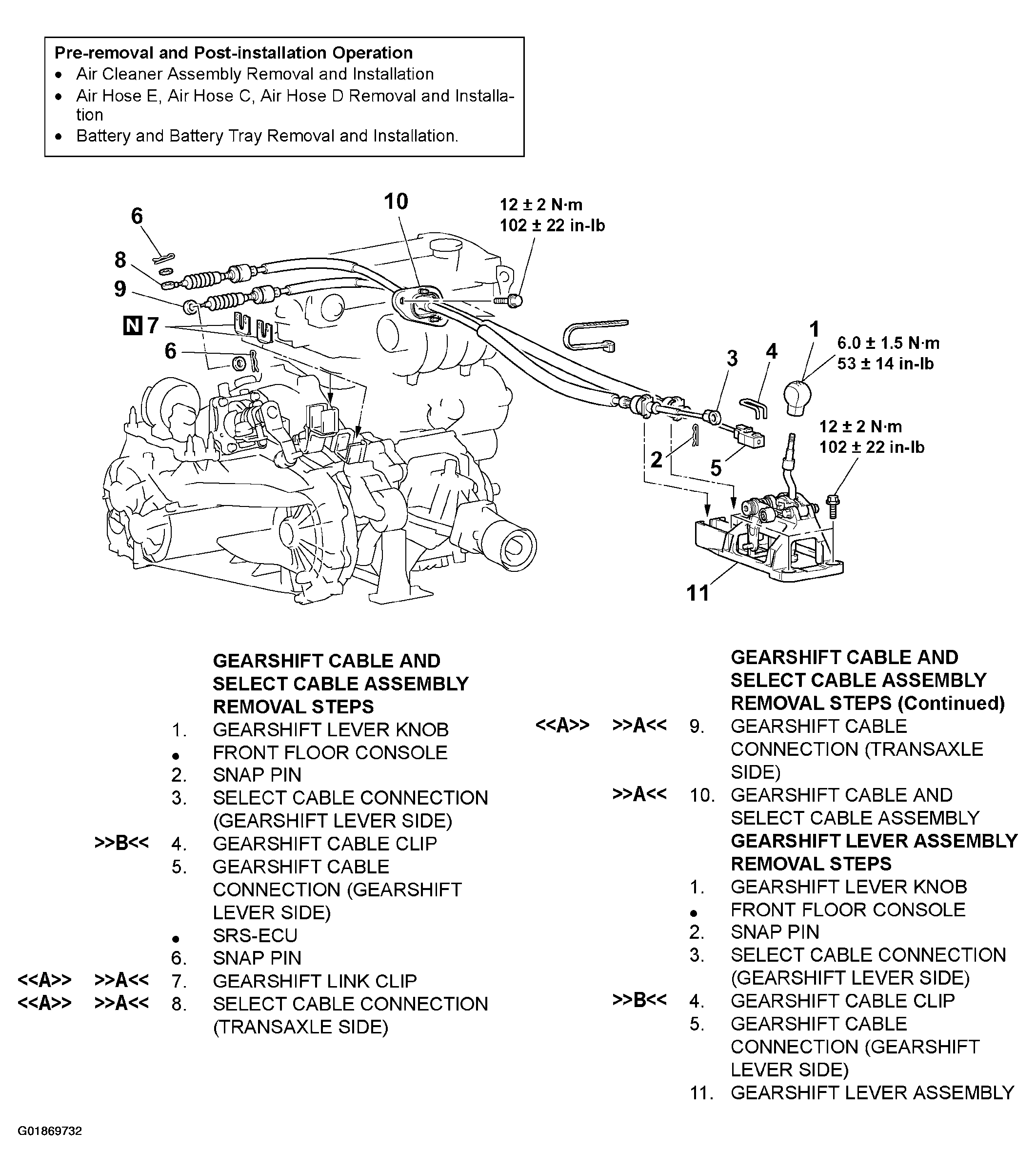

Fig 1: Exploded View And Torque Specification Of Transaxle Control
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
