Key Reminder Switch And Ignition Key Ring Antenna Continuity Check

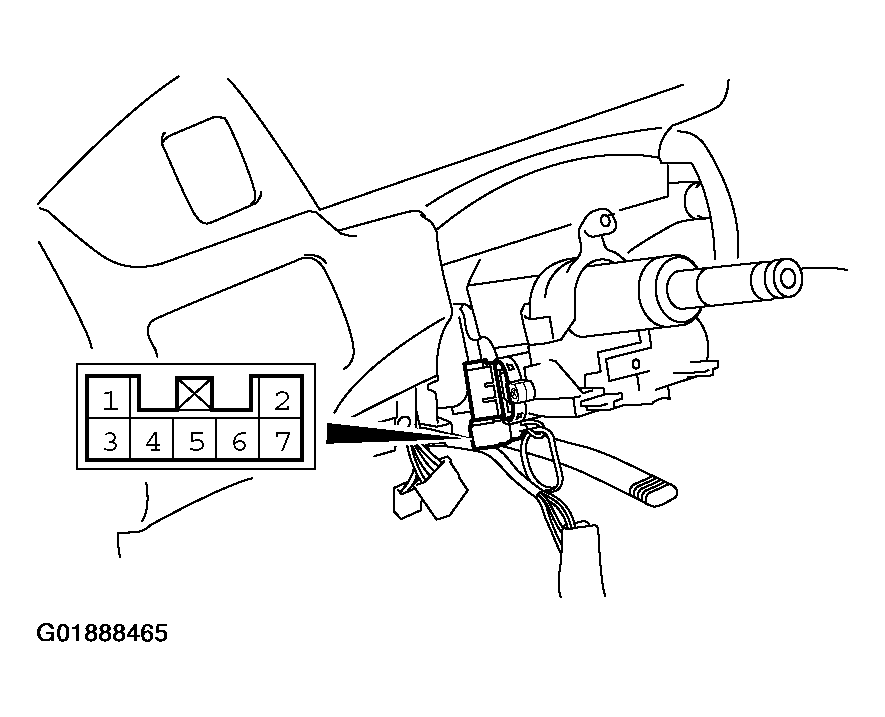

- Ignition key reminder switch continuity check. Disconnect key reminder switch connector C-88 without removing the ignition switch and steering lock cylinder. Then check the continuity.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Ignition key ring antenna check.
Check for continuity between terminal 3 and terminal 7.
- Standard value: 2ohm or less
