Abs Warning Light Relay Check

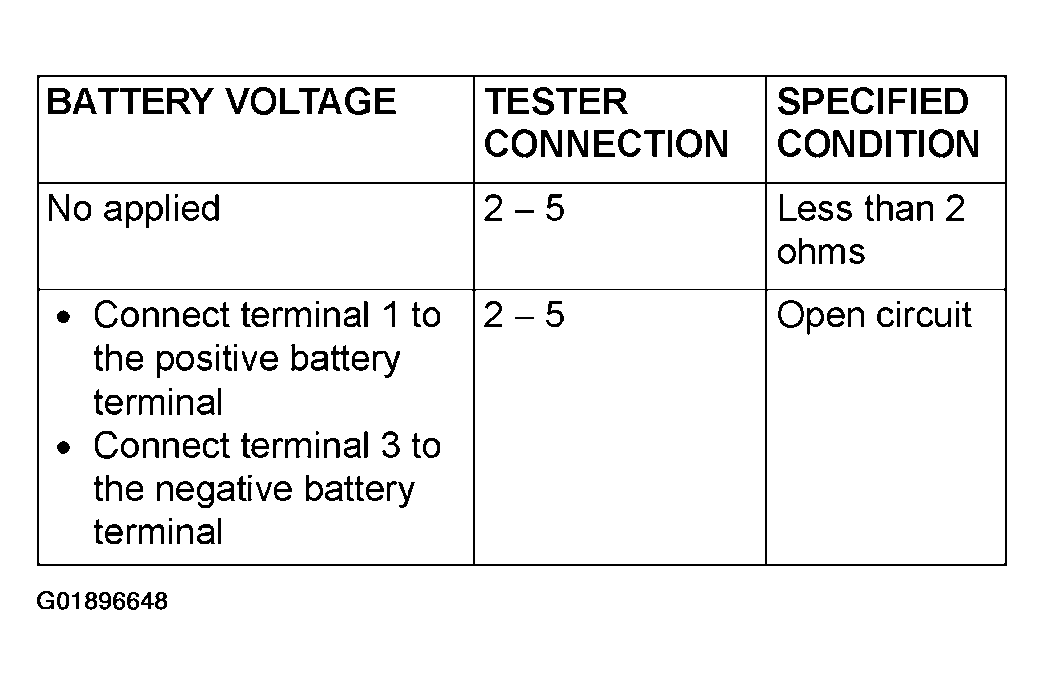

Fig 1: Checking ABS Warning Light Relay (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

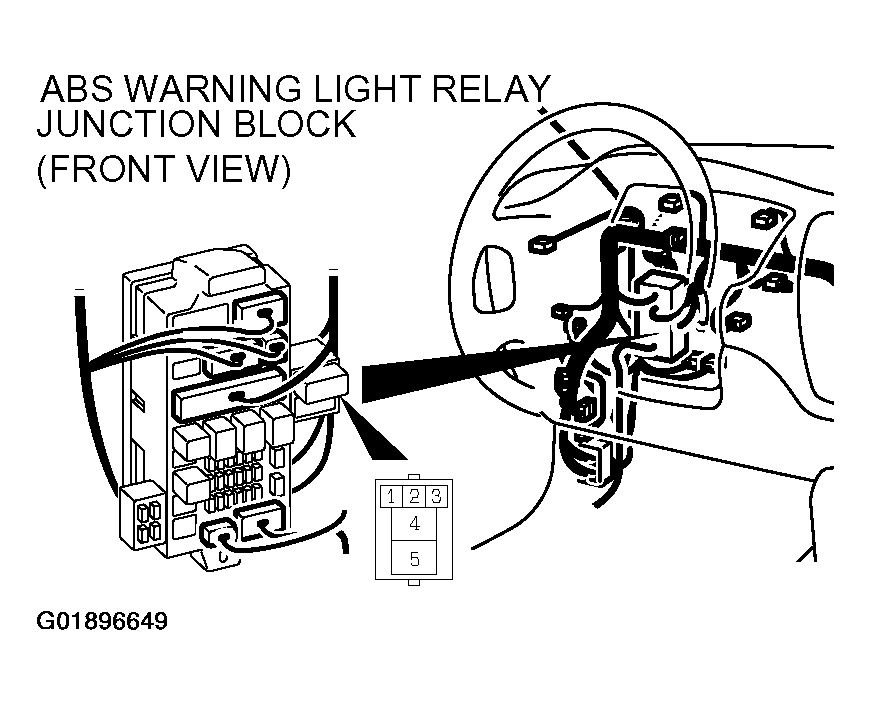

Fig 2: Checking ABS Warning Light Relay (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
