Home › Mitsubishi › 2003 › Lancer LS › Repair and Diagnosis › Engine Mechanical › Cooling Fans - Except Evolution › Component Tests › Fan Control Relay

Fan Control Relay

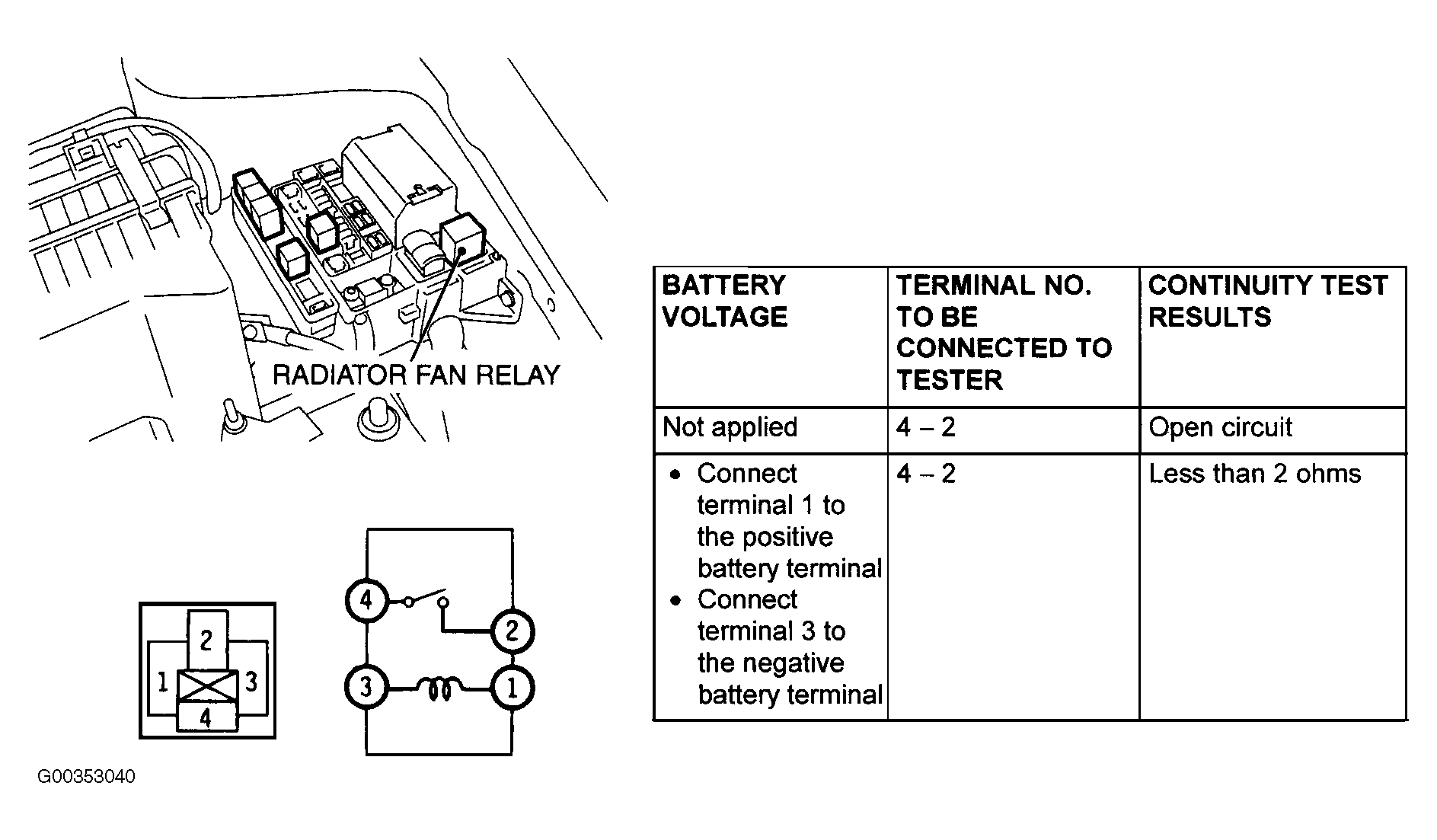

Fig 1: Testing Fan Control Relay
G00353040Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
