Special Tools

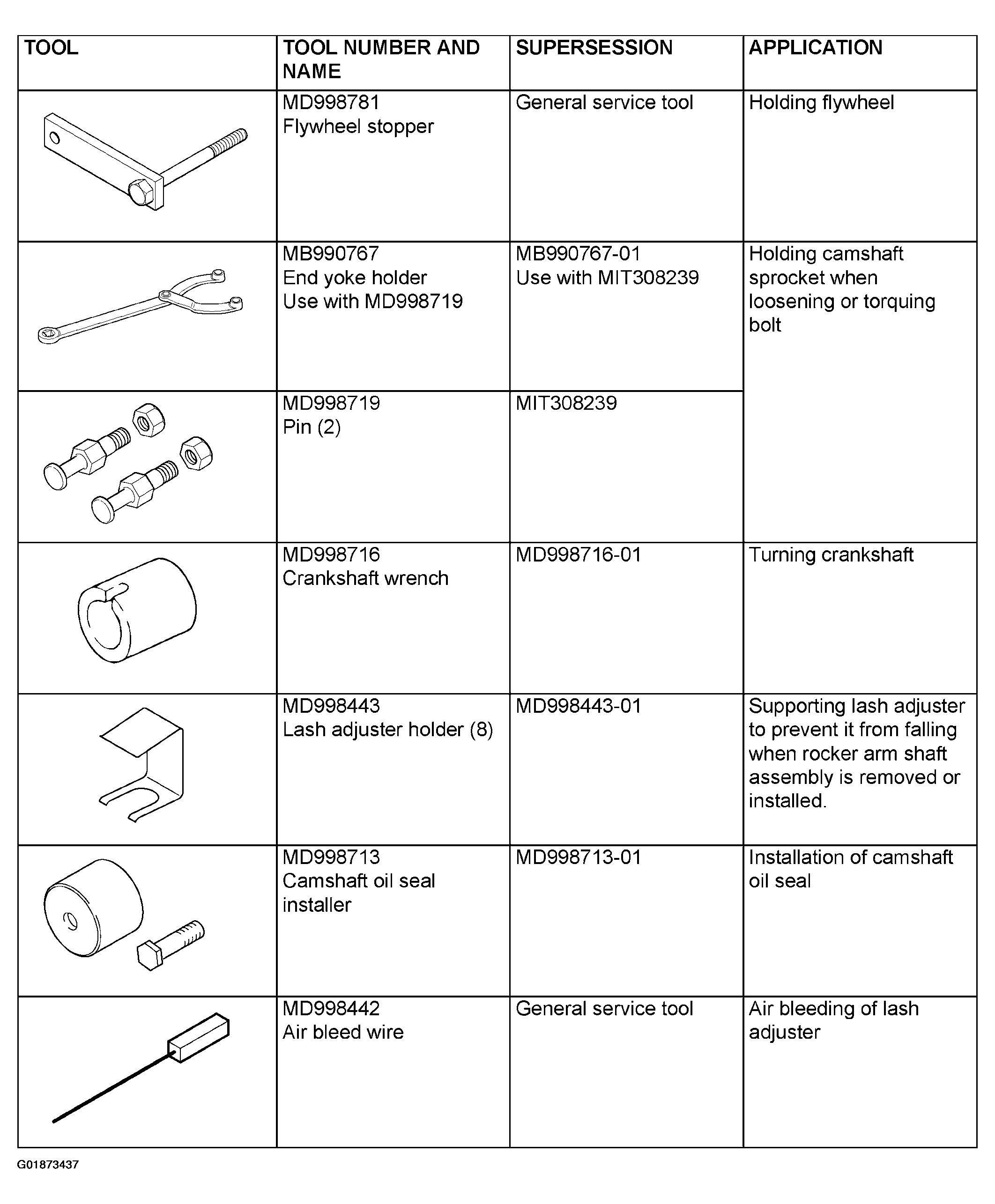

Fig 1: Identifying Special Service Tools (1 Of 3)
G01873437Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

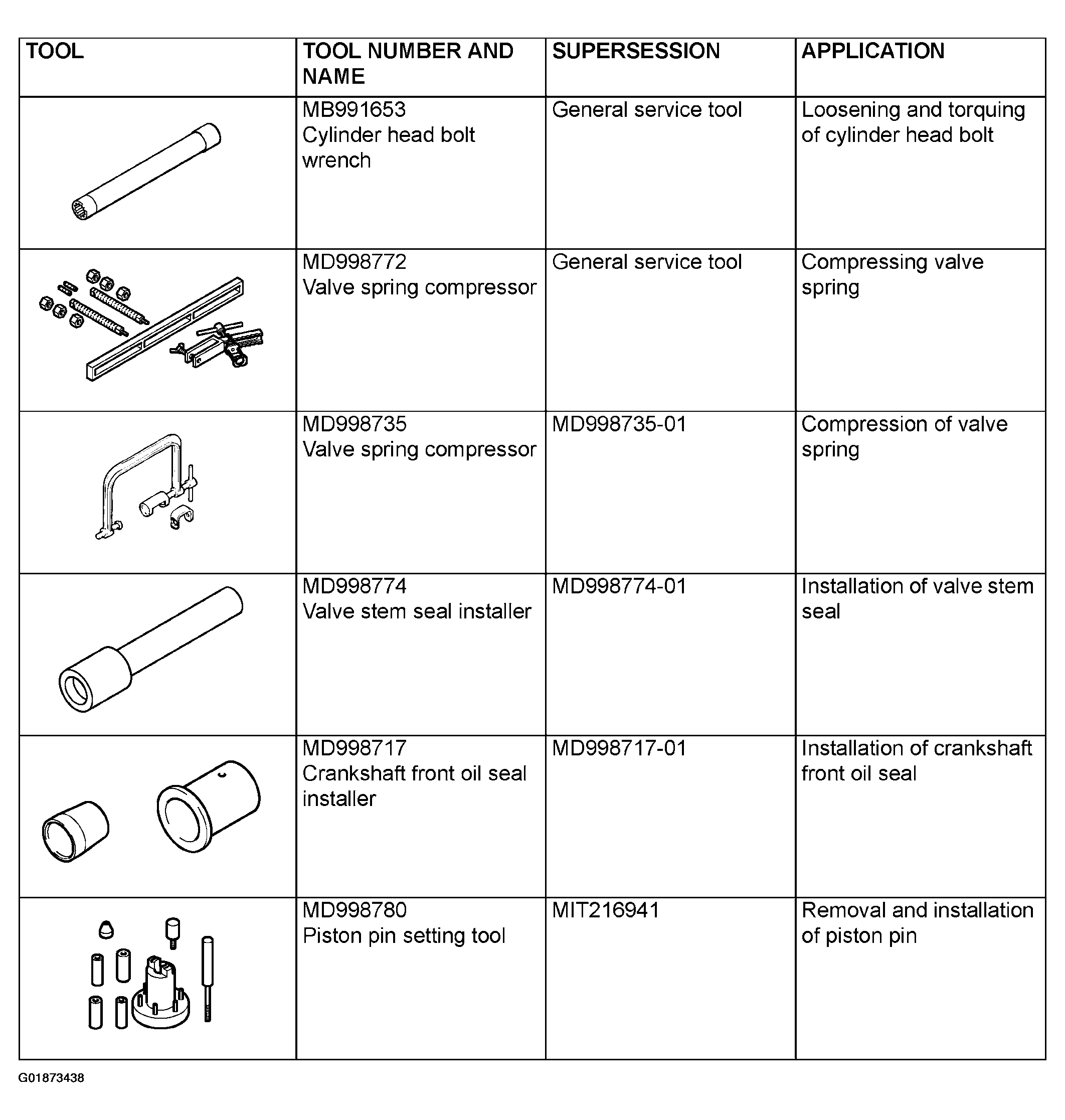

Fig 2: Identifying Special Service Tools (2 Of 3)
G01873438Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

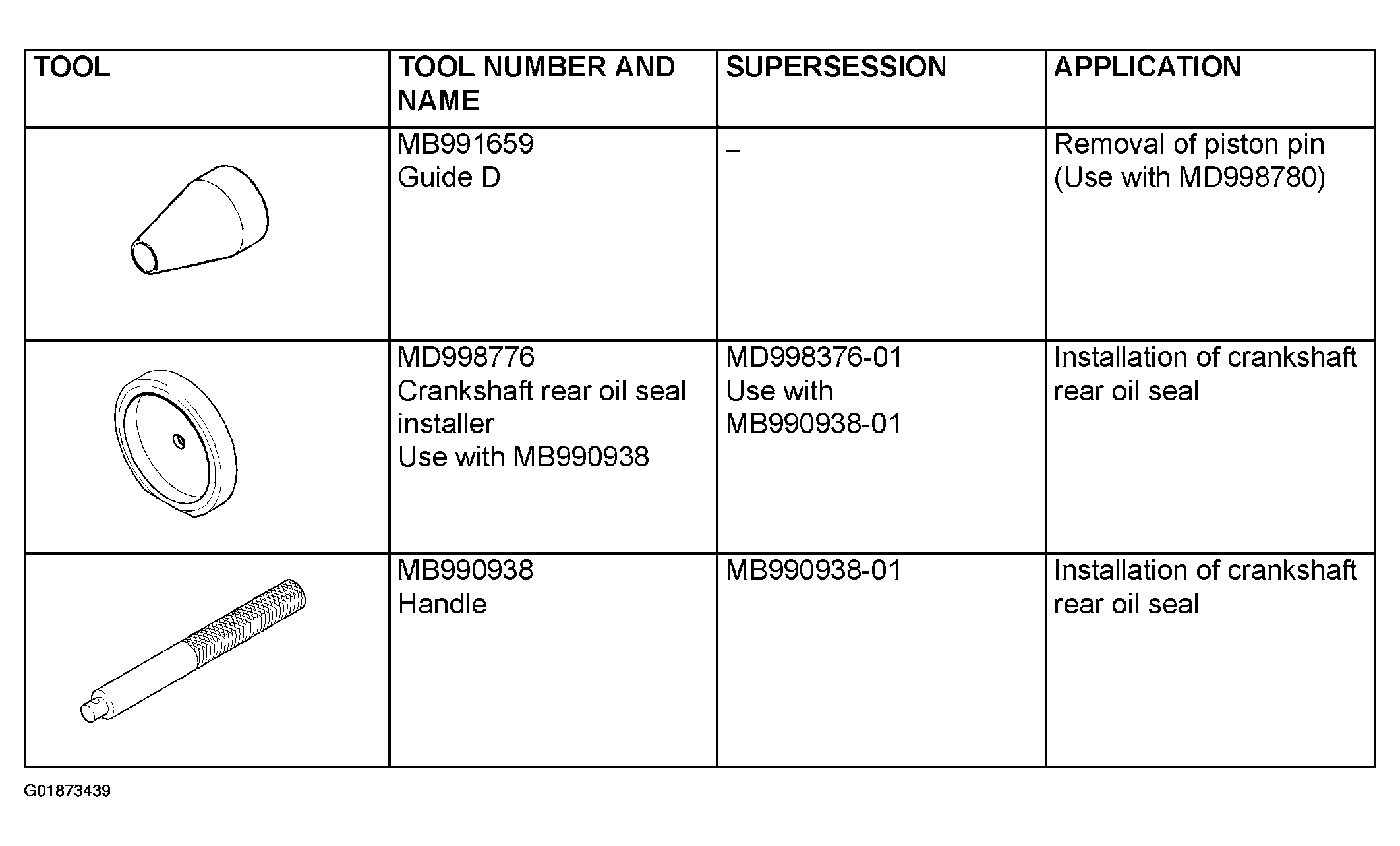

Fig 3: Identifying Special Service Tools (3 Of 3)
G01873439Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
