Removal And Installation

CAUTION: * : Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

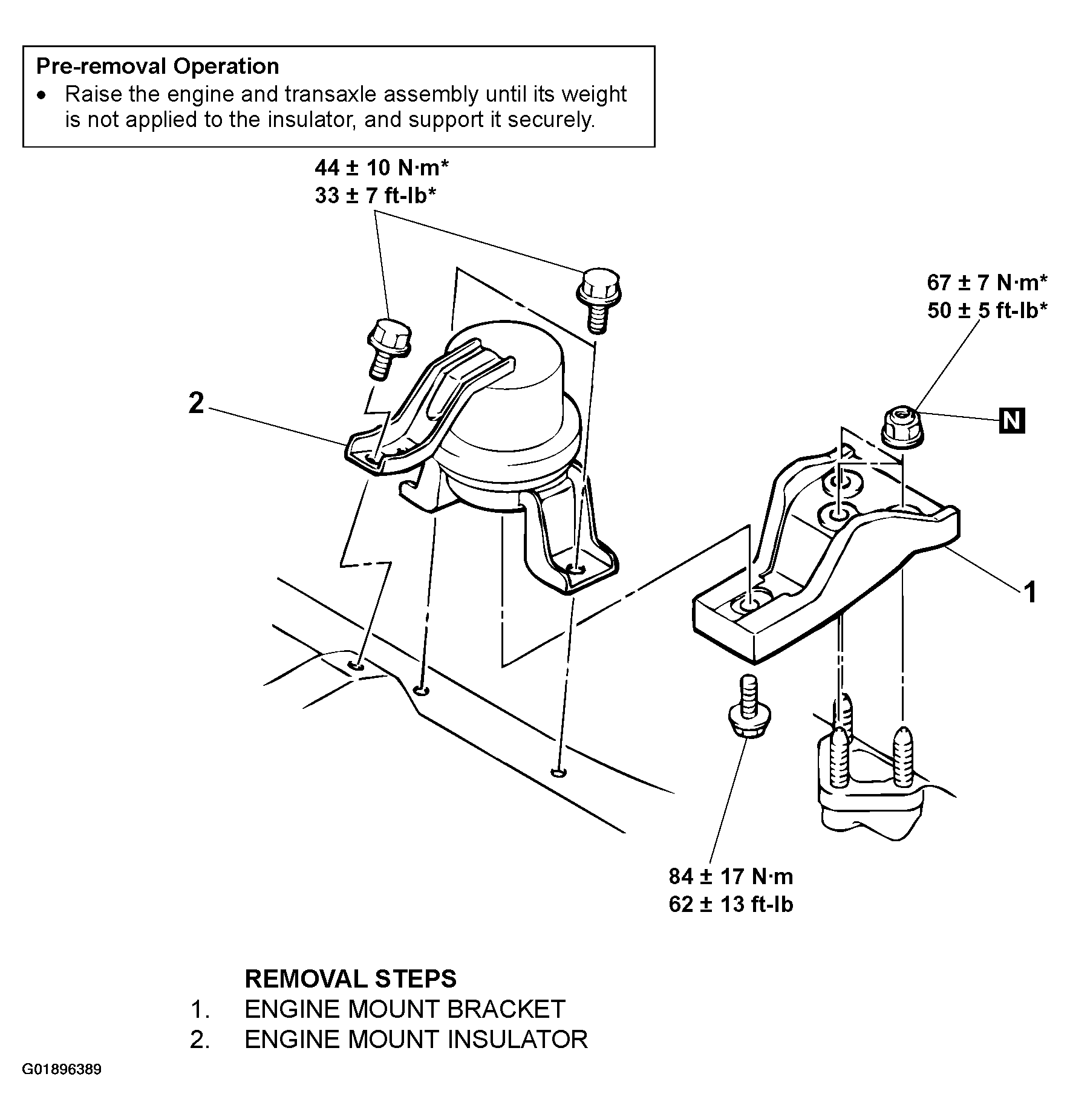

Fig 1: Removing & Installing Engine Mount
G01896389Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
